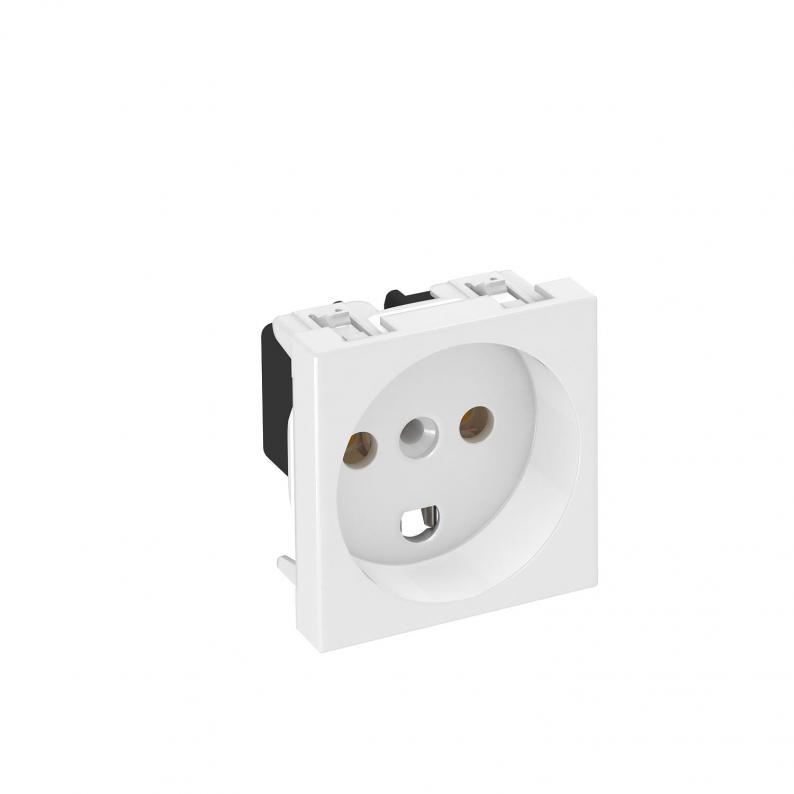

0° socket, Denmark, single

0° socket, Denmark, single

Type SKS-DK0 RW1
|
Item no. 6117202
|
EAN 4012195462231
Show all variants
Item no. / Type
6117202 / SKS-DK0 RW1
Ünite sayısı
1
Version for
Single 0°
Colour
Pure white; RAL 9010

Smallest selling unit: 12 piece

piece

Description

Socket, single 0°, to Danish standard, with increased touch protection, with screw terminals, 2-pin, 16 A 250 V~, with connection terminals to IEC 60884-1.


For installation in Rapid 45 ducts, device installation ducts, installation columns, underfloor systems and Deskboxes.

  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

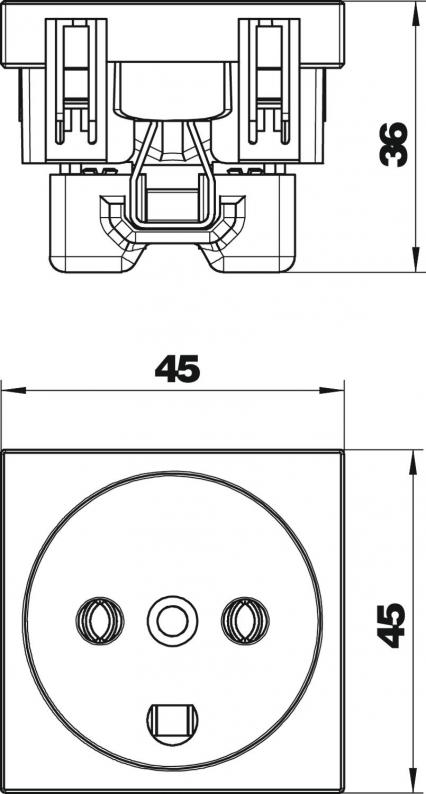

Dimensions

Width45 mm
Height45 mm

Technical data

Kutup sayısı2
Hinged coverno
increased touch protectionyes
Warning lightno
Halojen İçermezno
Etiket alanıno
Ünite sayısı1
Koruma sınıfıOther
Nominal current16 A
Anma gerilimi250 V
Closableno
Ejection mechanismno
Surge protectionno
Error current protectionno
With fine-wire fuseno
With on/off switchno
Rotated central insertno
Depth36 mm
CoverCentral plate
Printed label/codingWithout printing
Special power supplyWithout special power supply
Surface versionNot applicable
Transparentno
Socket angle0°
With functional lightingno
With orientation lightingno
For more difficult conditions (according to VDE)no
Version forSingle 0°
Mounting typeDevice installation duct
Fastening typeLock
Operating temperature, min.-5 °C
Operating temperature, max.40 °C
Boyut250V, 10/16A
MaterialPolycarbonate
ColourPure white; RAL 9010

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya0,0097 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

SKS-DK0 RW1
Item no.
6117202
Ünite sayısı
1
Version for
Tekli 0°
Colour
Pure white; RAL 9010
