0° socket, India, 5 A, single
Type STD-IN0 RW1
|Item no. 6120726
|EAN 4012196049899
Item no. / Type
6120726 / STD-IN0 RW1
Ünite sayısı
1
Version for
Single 0°
Colour
Pure white; RAL 9010
Smallest selling unit: 1 piece
1piece
piece
Description

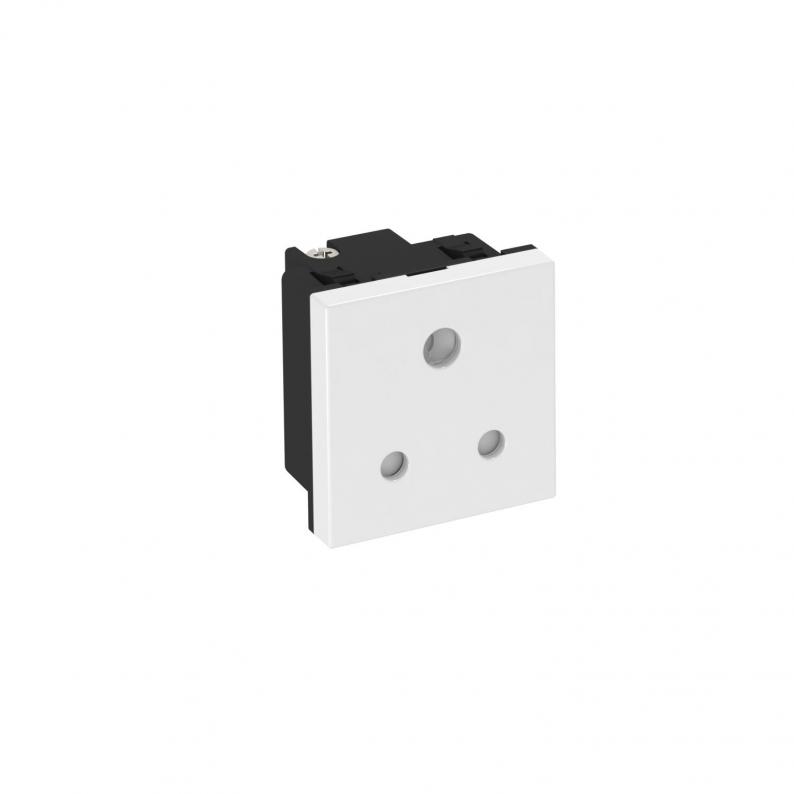

Socket, single 0°, India, conforming to BS 546, with increased touch protection, with screw terminals, 2-pin, 5 A, 250 V~.
Technical data
Technical data
| Kutup sayısı | 2 |
|---|---|
| increased touch protection | yes |
| Ünite sayısı | 1 |
| Koruma sınıfı | Other |
| Nominal current | 5 A |
| Anma gerilimi | 250 V |
| Closable | no |
| With on/off switch | no |
| Cover | Central plate |
| Printed label/coding | Without printing |
| Special power supply | Without special power supply |
| Surface version | Not applicable |
| Transparent | no |
| With functional lighting | no |
| With orientation lighting | no |
| For more difficult conditions (according to VDE) | no |
| Version for | Single 0° |
| Mounting type | Device installation duct |
| Fastening type | Lock |
| Operating temperature, min. | -5 °C |
| Operating temperature, max. | 40 °C |
| Boyut | 250V, 5A |
| Material | Polycarbonate |
| Colour | Pure white; RAL 9010 |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,0174 kg CO2e / 1 Piece |
|---|
