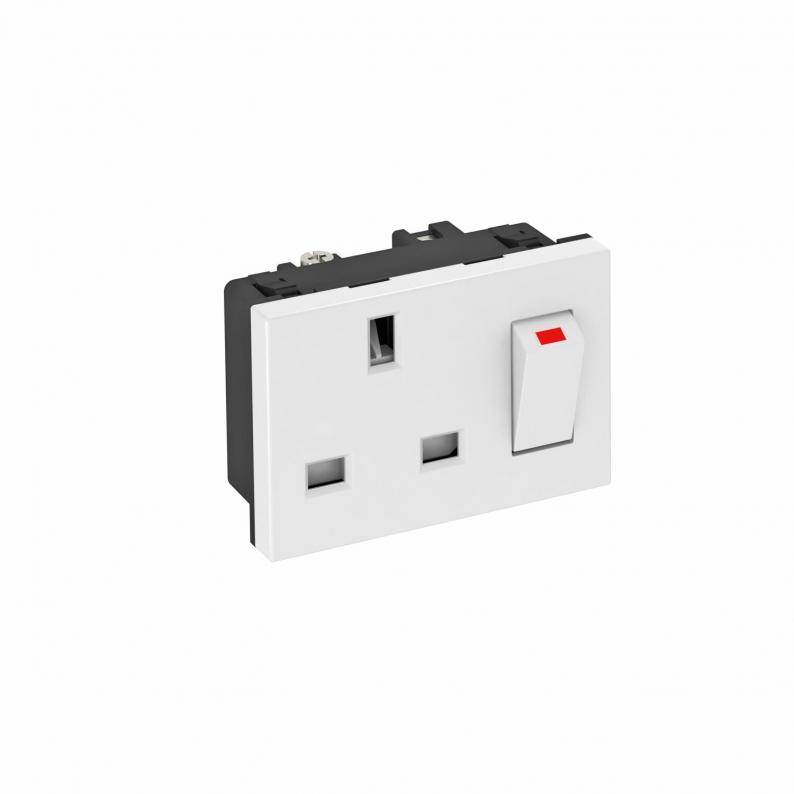

0° socket with switch, British Standard, single
Type STD-BS0G RW1.5
|Item no. 6120724
|EAN 4012196049868
Item no. / Type
6120724 / STD-BS0G RW1.5
Ünite sayısı
1
Version for
Single 0°
Colour
Pure white; RAL 9010
Smallest selling unit: 1 piece
1piece
piece
Description
Socket, single 0°, with switch, British Standard, conforms to BS 1363, with increased touch protection, with screw terminals, 2-pin, 13 A, 250 V~.
Technical data

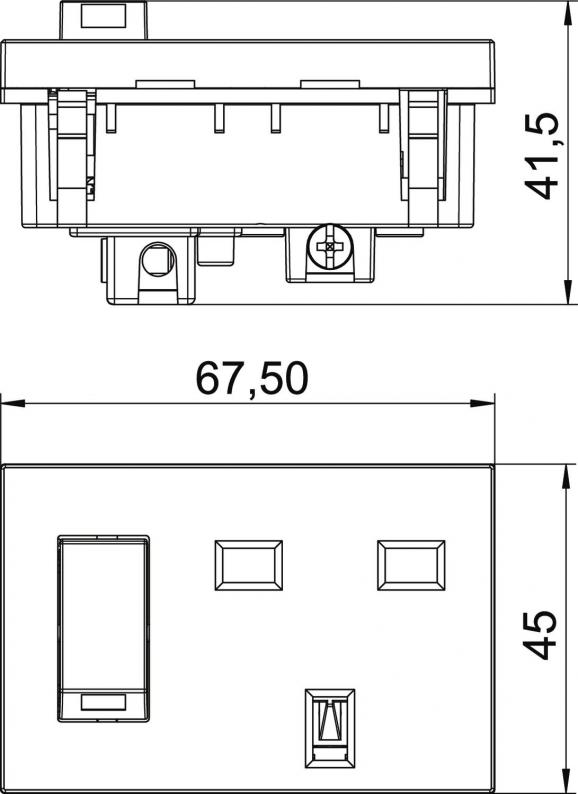

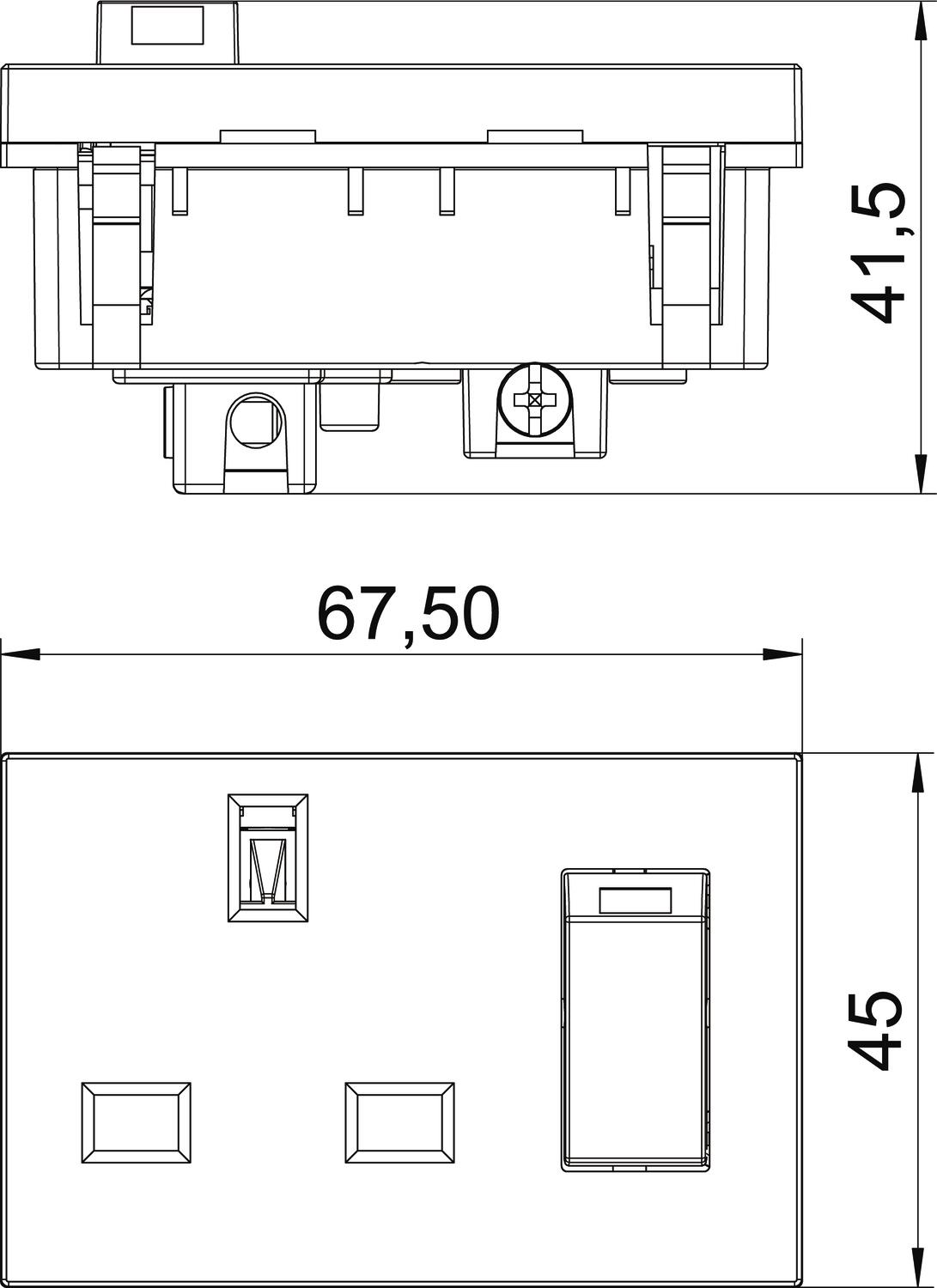

Dimensions
| Width | 67,5 mm |
|---|---|
| Height | 45 mm |
Technical data
| Kutup sayısı | 2 |
|---|---|
| Hinged cover | no |
| increased touch protection | yes |
| Warning light | no |
| Halojen İçermez | yes |
| Etiket alanı | no |
| Ünite sayısı | 1 |
| Koruma sınıfı | Other |
| Nominal current | 13 A |
| Anma gerilimi | 250 V |
| Closable | no |
| Ejection mechanism | no |
| Surge protection | no |
| Error current protection | no |
| With fine-wire fuse | no |
| With on/off switch | yes |
| Rotated central insert | no |
| Depth | 41,5 mm |
| Cover | Central plate |
| Printed label/coding | Without printing |
| Special power supply | Without special power supply |
| Surface version | Matt |
| Transparent | no |
| Socket angle | 0° |
| Number of switchable sockets | 1 |
| With functional lighting | no |
| With orientation lighting | no |
| For more difficult conditions (according to VDE) | no |
| Version for | Single 0° |
| Number of modules (for modular construction) | 0 |
| Insulated installation | no |
| Mounting type | Device installation duct |
| Fastening type | Lock |
| Connection type | Screw terminal |
| Operating temperature, min. | -5 °C |
| Operating temperature, max. | 40 °C |
| Coding | no |
| Boyut | 250V, 13A |
| Material | Polycarbonate |
| Colour | Pure white; RAL 9010 |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,0359 kg CO2e / 1 Piece |
|---|
