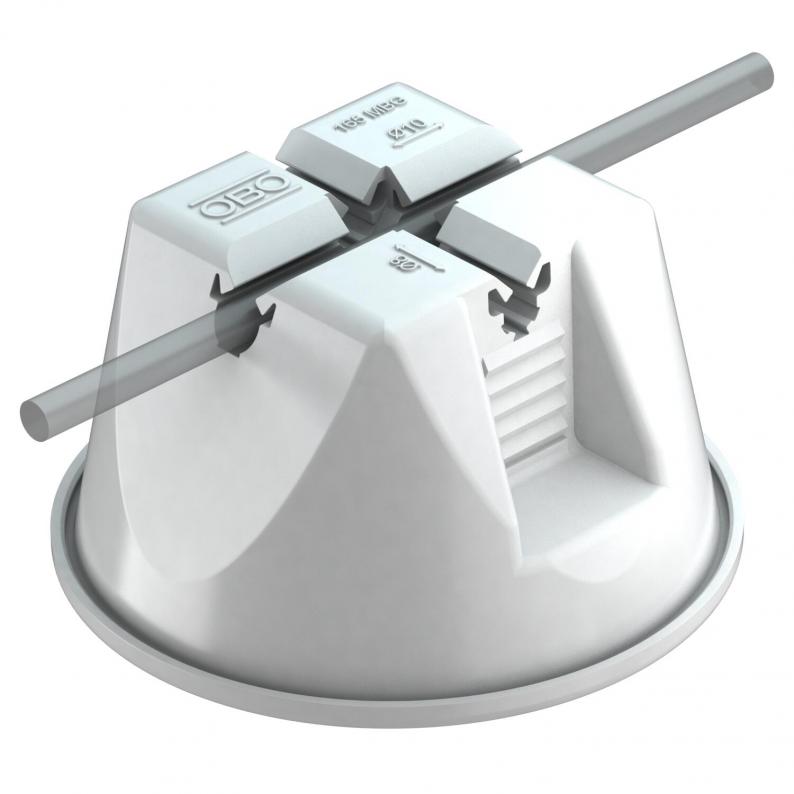

165 MBG... roof cable holder for flat roofs, grey, with concrete

165 MBG... roof cable holder for flat roofs, grey, with concrete

Type 165 MBG-8-10 GR
|
Item no. 5218708
|
EAN 4012196648313
Show all variants
Item no. / Type
5218708 / 165 MBG-8-10 GR
Length
133,5 mm
Uyumluluk
Rd 8-10 mm

Smallest selling unit: 12 piece

piece

Description

• Closed form with base

• With double conductor holder

• Filling weight 1 kg (frost resistant concrete)

• Case made from polyethylene, light grey, UV-resistant and weatherproof

• Base made from polyamide PA 6, light grey, UV-resistant and weatherproof

• Base suitable for nearly all roofing membrane systems (bitumen, PVC)
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

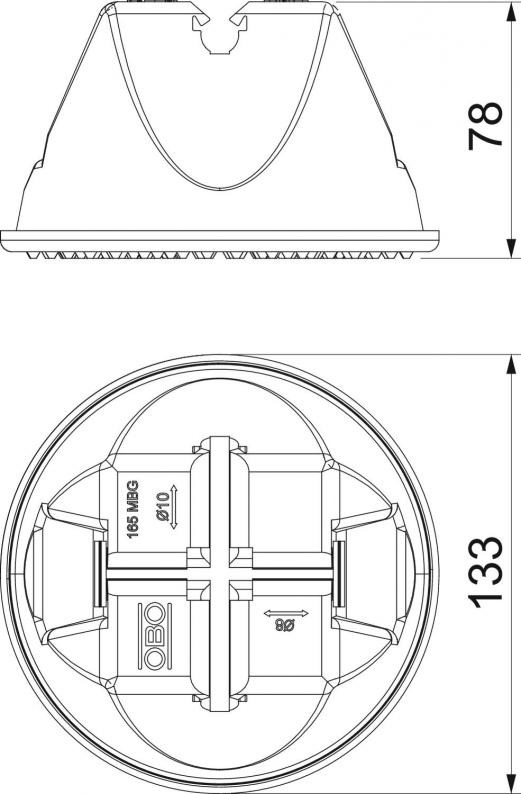

Dimensions

Length133,5 mm

Technical data

Conductor diameter, min.8
Conductor diameter, max.10
Conductor fastening typeWith clip
ApplicationFlat roof
Mounting typeMiscellaneous
UyumlulukRd 8-10 mm
Boyut8-10mm
MaterialPolyamide/Polyethylene
ColourGrey

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya0,4732 kg CO2e / 1 Piece

Accessories

System accessories
Type
165 MBG UH

Smallest selling unit: 25 piece

piece

Type
165 MBG HFL

Smallest selling unit: 12 piece

piece

Type
165 MBG HGRM

Smallest selling unit: 50 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

165 MBG-8-10 GR
Item no.
5218708
Length
133,5
Uyumluluk
Rd 8-10
