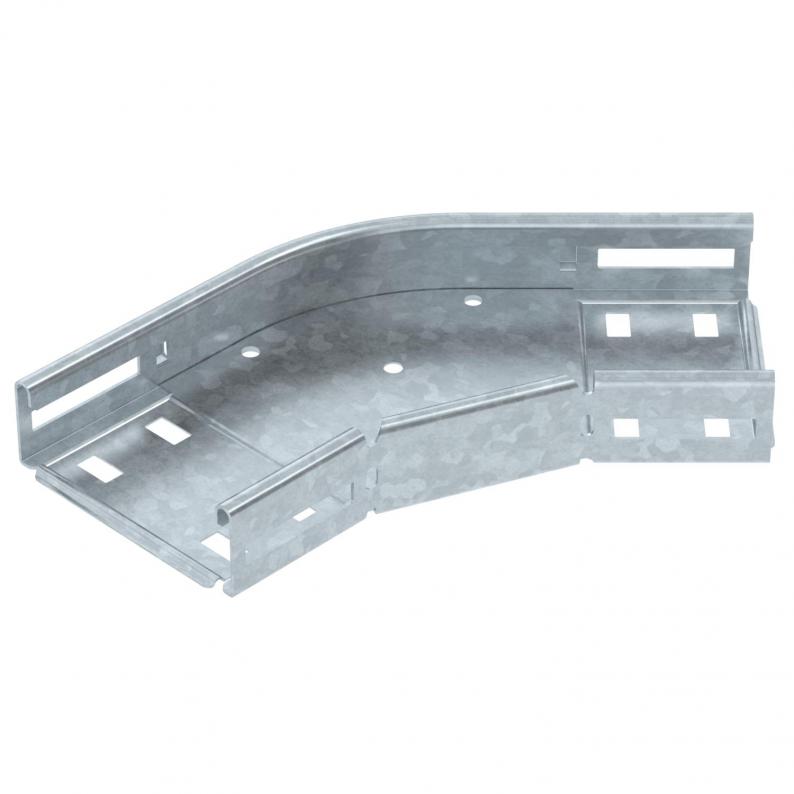

45° bend 35 FT

45° bend 35 FT

Type RB 45 310 FT
|
Item no. 6036010
|
EAN 4012197345730
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

Description

45° bend for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 35 mm. Screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width100 mm
Height35 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Side perforationyes
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness0,8 mm
Mounting perforation in baseyes
NATO hole patternno
Material thickness, floor plate0,8 mm
Bend (angle)45°
Change of directionHorizontal
TypeBend, rigid
Rail thickness1,25 mm
Permitted temperature range, min.-20 °C
Permitted temperature range, max.120 °C
Dimension35x100
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed
Recommended quantity of bolts6 St.

Environmental Data

1,2162 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate1,2162 kg CO2e / 1 Piece

Accessories

System accessories
Mounting accessories

Item no. 6036450

Cover, 45° bend DD
Type
RBD 45 100 DD

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
RB 45 310 FT
Item no.
6036010
Width
100
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RB 45 320 FT
Item no.
6036012
Width
200
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RB 45 330 FT
Item no.
6036014
Width
300
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
