90° bend 35 FS
Type RB 90 320 FS
|Item no. 6036502
|EAN 4012197343019
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description

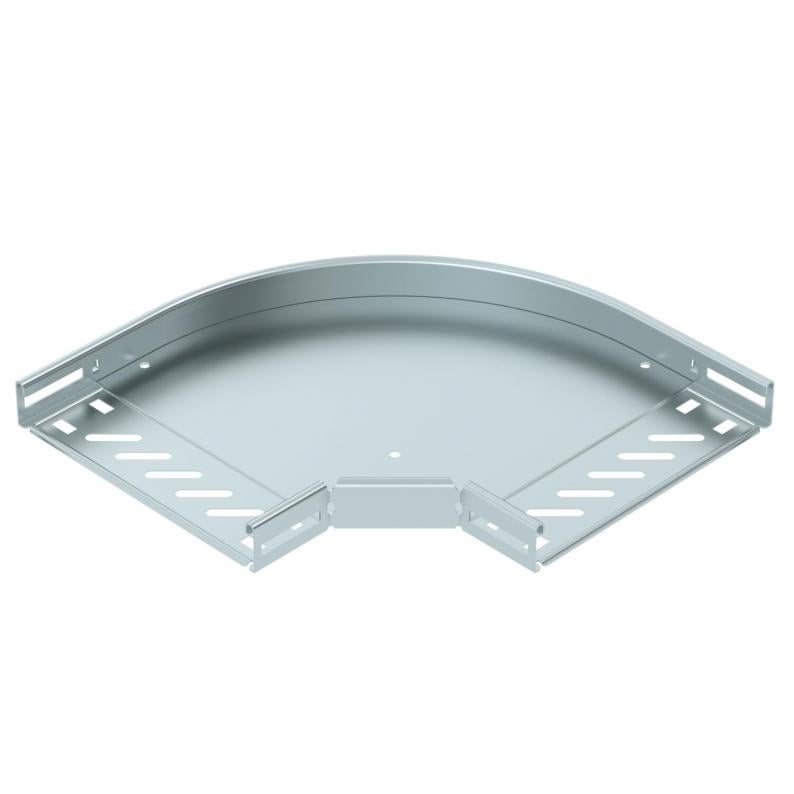

90° bend for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 35 mm. Screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
Technical data

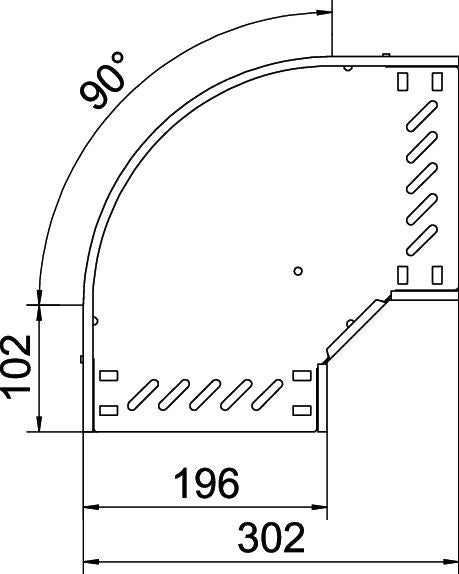

Dimensions
| Width | 200 mm |
|---|---|
| Height | 35 mm |
| Dimension B | 200 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 0,8 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Material thickness, floor plate | 0,8 mm |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| With cover | no |
| Type | Bend, rigid |
| Rail thickness | 1,25 mm |
| Permitted temperature range, min. | -20 °C |
| Permitted temperature range, max. | 120 °C |
| Dimension | 35x200 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
| Recommended quantity of bolts | 8 St. |
| Product series | MKS Series, RKSM Series |
Environmental Data
2,5788 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 2,5788 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 2,5788 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
Accessories
System accessories
Article
Type
Item no.
Amount
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Colour
Item no.
RB 90 310 FS
100
Strip galvanised
Steel
zinc
6036500
RB 90 320 FS
200
Strip galvanised
Steel
zinc
6036502
RB 90 330 FS
300
Strip galvanised
Steel
zinc
6036504
Width
RB 90 310 FS
Item no.
6036500
Width
100
Surface
Strip galvanised
Material
Steel
Colour
zinc
RB 90 320 FS
Item no.
6036502
Width
200
Surface
Strip galvanised
Material
Steel
Colour
zinc
RB 90 330 FS
Item no.
6036504
Width
300
Surface
Strip galvanised
Material
Steel
Colour
zinc
