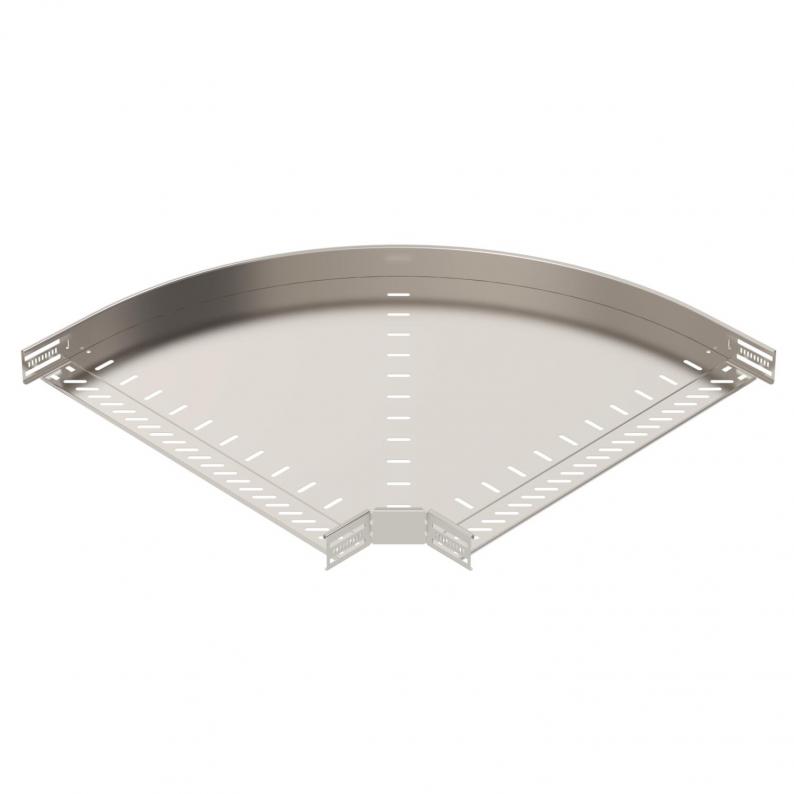

90° bend 60 A2

90° bend 60 A2

Type RB 90 660 A2
|
Item no. 6036632
|
EAN 4012197344122
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

Description

90° bend for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

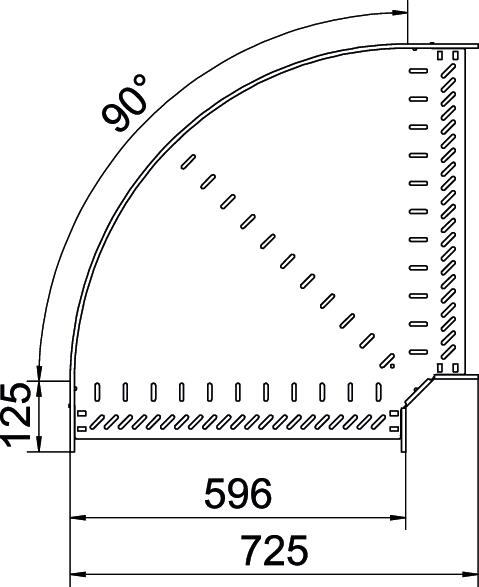

Dimensions

Width600 mm
Height60 mm
Dimension B600 mm

Technical data

Maintain electrical functionsno
Yan delikyes
Connector versionIntegrated connector
Wide-span versionno
Paslanmaz çelik, mordanlıno
Plate thickness1 mm
Tabanda montaj deliğiyes
NATO hole patternno
Material thickness, floor plate1 mm
Dönüş elemanı (L tipi bağlantı)90°
Change of directionHorizontal
Üst parçalıno
TypeBend, rigid
Yan parça kalınlığı1,25 mm
Kullanılabilir sıcaklık aralığı min.-20 °C
Kullanılabilir sıcaklık aralığı maks.120 °C
Boyut60x600
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel
Type of connector, cable support systemscrewed/clamped
Recommended quantity of bolts16 St.

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya48,1646 kg CO2e / 1 Piece

Accessories

System accessories
Mounting accessories

Item no. 6036982

Cover, 90° bend A2
Type
RBD 90 600 A2

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
RB 90 610 A2
Item no.
6036620
Width
100
Surface
Bright, treated
Material
Stainless steel 1.4301
Colour
stainless steel
RB 90 615 A2
Item no.
6036622
Width
150
Surface
Bright, treated
Material
Stainless steel 1.4301
Colour
stainless steel
RB 90 620 A2
Item no.
6036624
Width
200
Surface
Bright, treated
Material
Stainless steel 1.4301
Colour
stainless steel
RB 90 630 A2
Item no.
6036626
Width
300
Surface
Bright, treated
Material
Stainless steel 1.4301
Colour
stainless steel
RB 90 640 A2
Item no.
6036628
Width
400
Surface
Bright, treated
Material
Stainless steel 1.4301
Colour
stainless steel
RB 90 650 A2
Item no.
6036630
Width
500
Surface
Bright, treated
Material
Stainless steel 1.4301
Colour
stainless steel
RB 90 660 A2
Item no.
6036632
Width
600
Surface
Bright, treated
Material
Stainless steel 1.4301
Colour
stainless steel
