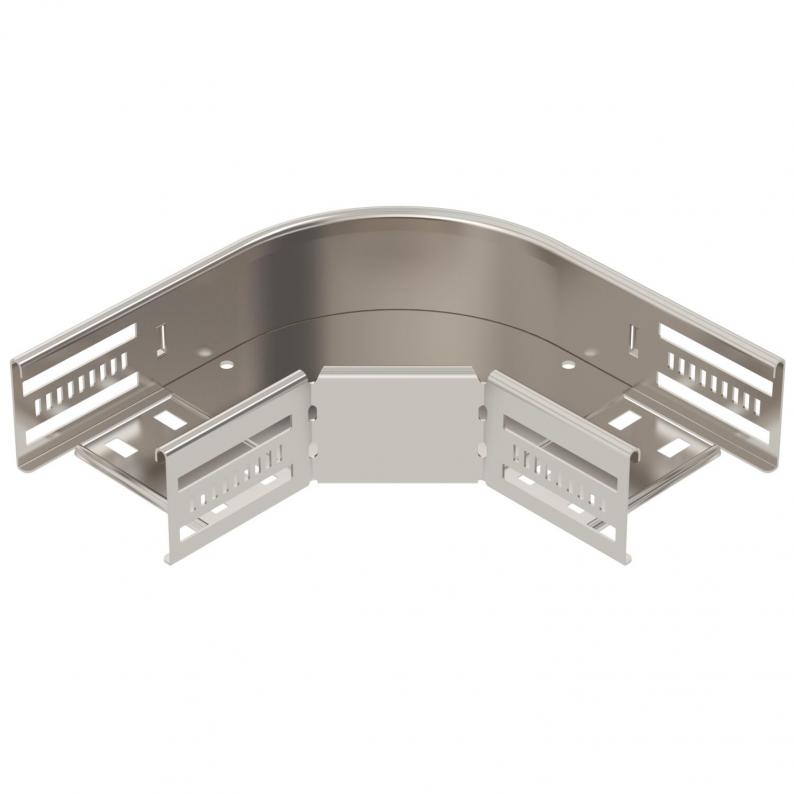

90° bend 60 A4

90° bend 60 A4

Type RB 90 610 A4
|
Item no. 6036650
|
EAN 4012197343774
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

Description

90° bend for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

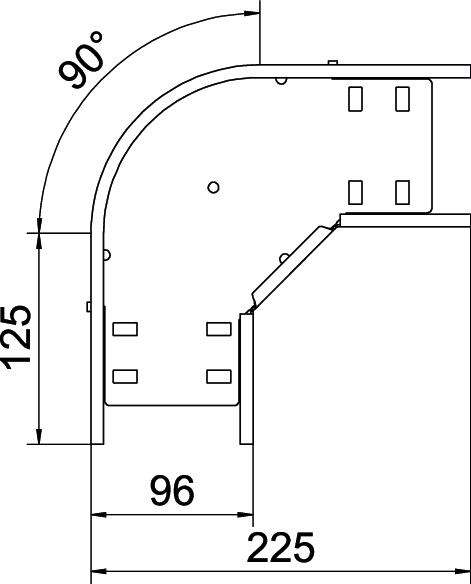

Dimensions

Width100 mm
Height60 mm
Dimension B100 mm

Technical data

Maintain electrical functionsyes
Yan delikyes
Connector versionIntegrated connector
Wide-span versionno
Paslanmaz çelik, mordanlıno
Plate thickness0,8 mm
Tabanda montaj deliğiyes
NATO hole patternno
Material thickness, floor plate0,8 mm
Dönüş elemanı (L tipi bağlantı)90°
Change of directionHorizontal
Üst parçalıno
TypeBend, rigid
Yan parça kalınlığı1,25 mm
Kullanılabilir sıcaklık aralığı min.-20 °C
Kullanılabilir sıcaklık aralığı maks.120 °C
Boyut60x100
SurfaceBright, treated
MaterialStainless steel 1.4571
Colourstainless steel
Type of connector, cable support systemScrewed
Recommended quantity of bolts10 St.

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya4,7397 kg CO2e / 1 Piece

Accessories

System accessories
Mounting accessories

Item no. 6036986

Cover, 90° bend A4
Type
RBD 90 100 A4

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
RB 90 610 A4
Item no.
6036650
Width
100
Surface
Bright, treated
Material
Stainless steel 1.4571
Colour
stainless steel
RB 90 615 A4
Item no.
6036652
Width
150
Surface
Bright, treated
Material
Stainless steel 1.4571
Colour
stainless steel
RB 90 620 A4
Item no.
6036654
Width
200
Surface
Bright, treated
Material
Stainless steel 1.4571
Colour
stainless steel
RB 90 630 A4
Item no.
6036656
Width
300
Surface
Bright, treated
Material
Stainless steel 1.4571
Colour
stainless steel
RB 90 640 A4
Item no.
6036658
Width
400
Surface
Bright, treated
Material
Stainless steel 1.4571
Colour
stainless steel
RB 90 660 A4
Item no.
6036662
Width
600
Surface
Bright, treated
Material
Stainless steel 1.4571
Colour
stainless steel
RB 90 650 A4
Item no.
6036660
Width
500
Surface
Bright, treated
Material
Stainless steel 1.4571
Colour
stainless steel
