90° bend 60 FT
Type RB 90 650 FT
|Item no. 6036600
|EAN 4012197344580
Item no. / Type
Width
Colour
Smallest selling unit: 1 piece
1piece
piece
Description

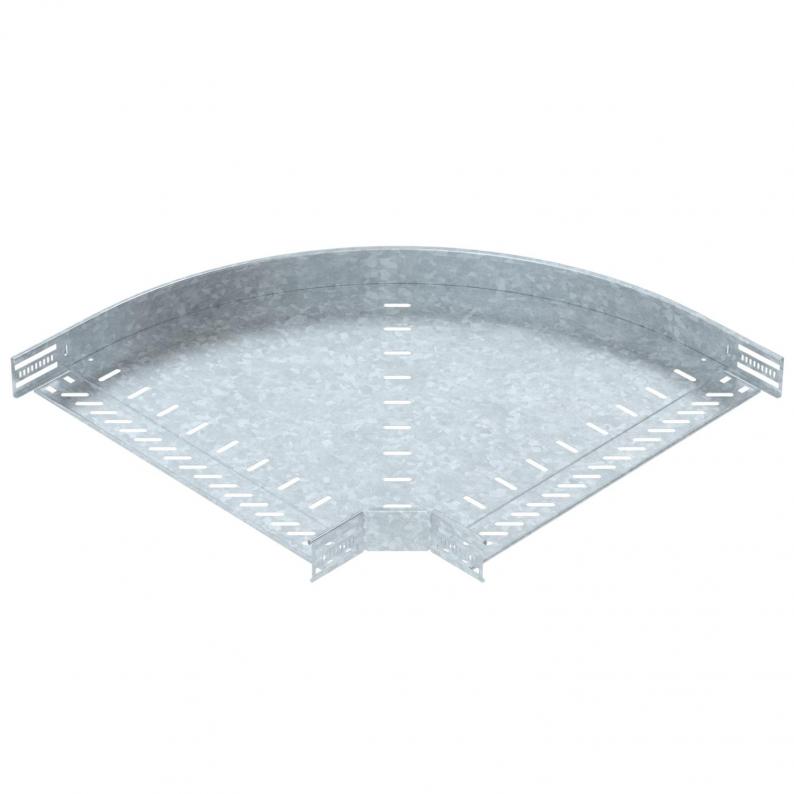

90° bend for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
Technical data

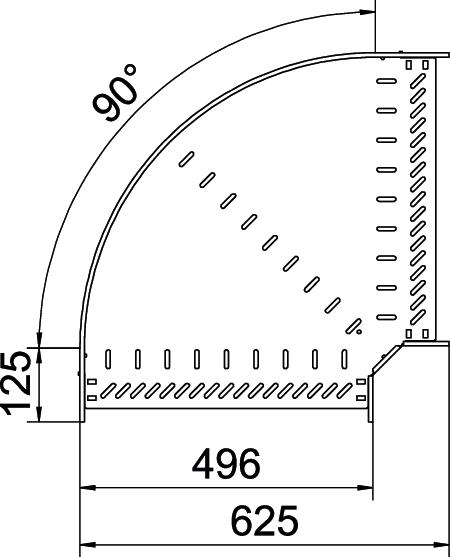

Dimensions
| Width | 500 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 500 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Yan delik | yes |
| Connector version | Integrated connector |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 0,8 mm |
| Tabanda montaj deliği | yes |
| NATO hole pattern | no |
| Material thickness, floor plate | 1 mm |
| Dönüş elemanı (L tipi bağlantı) | 90° |
| Change of direction | Horizontal |
| Üst parçalı | no |
| Type | Bend, rigid |
| Yan parça kalınlığı | 1,25 mm |
| Kullanılabilir sıcaklık aralığı min. | -20 °C |
| Kullanılabilir sıcaklık aralığı maks. | 120 °C |
| Boyut | 60x500 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | screwed/clamped |
| Recommended quantity of bolts | 16 St. |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 10,454 kg CO2e / 1 Piece |
|---|
Accessories
System accessories
Mounting accessories
Article
Type
Item no.
Amount
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (5)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Colour
Item no.
RB 90 610 FT
100
Hot-dip galvanised
Steel
Çinko grisi
6036590
RB 90 615 FT
150
Hot-dip galvanised
Steel
zinc
6036592
RB 90 620 FT
200
Hot-dip galvanised
Steel
Çinko grisi
6036594
RB 90 630 FT
300
Hot-dip galvanised
Steel
zinc
6036596
RB 90 640 FT
400
Hot-dip galvanised
Steel
Çinko grisi
6036598
RB 90 650 FT
500
Hot-dip galvanised
Steel
Çinko grisi
6036600
RB 90 660 FT
600
Hot-dip galvanised
Steel
Çinko grisi
6036602
