90° bend 85 FT
Type RB 90 840 FT
|Item no. 7126417
|EAN 4012196248056
Item no. / Type
7126417 / RB 90 840 FT
Width
400 mm
Surface
Hot-dip galvanised
Material
Steel
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

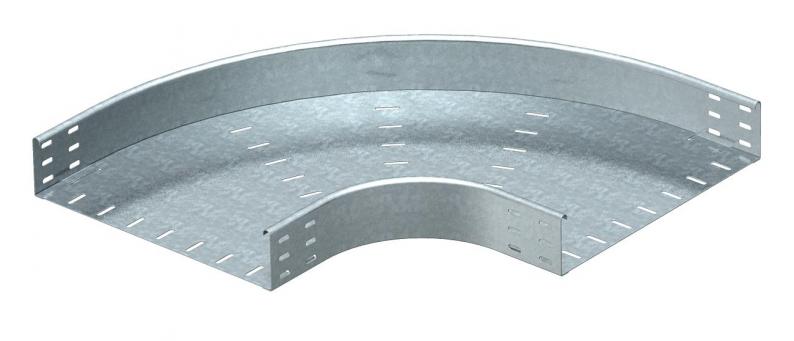

90° bend, horizontal, for all cable tray types of 85 mm side height.
Fastening materials should be ordered separately.
Technical data

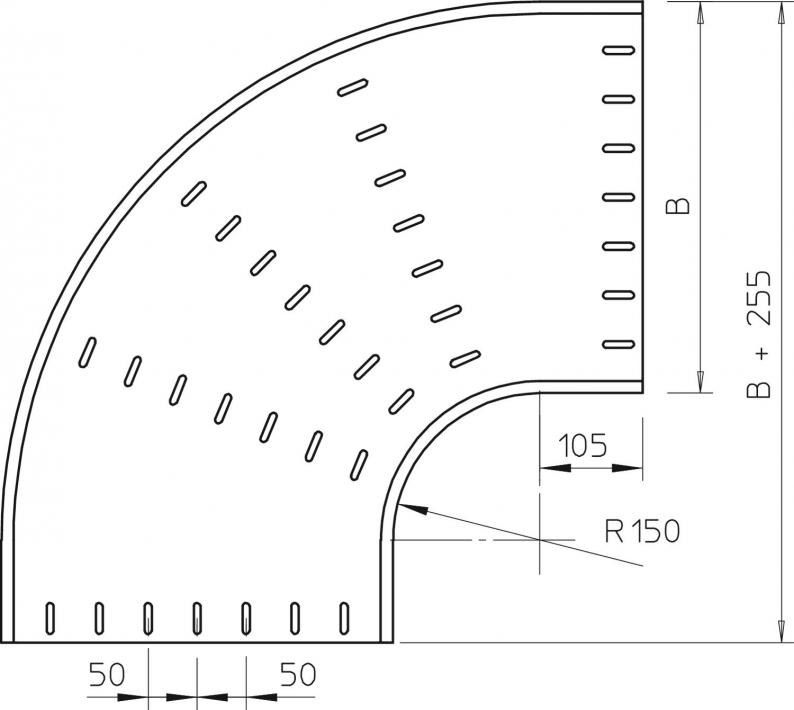

Dimensions
| Width | 400 mm |
|---|---|
| Height | 85 mm |
| Dimension B | 400 mm |
| Dimension R | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Yan delik | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| Tabanda montaj deliği | no |
| NATO hole pattern | no |
| Dönüş elemanı (L tipi bağlantı) | 90° |
| Change of direction | Horizontal |
| Boyut | 85x400 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 6406122
Truss-head bolt with flange nut FType
FRSB 6x12 F
Smallest selling unit: 100 piece
100piece
piece
