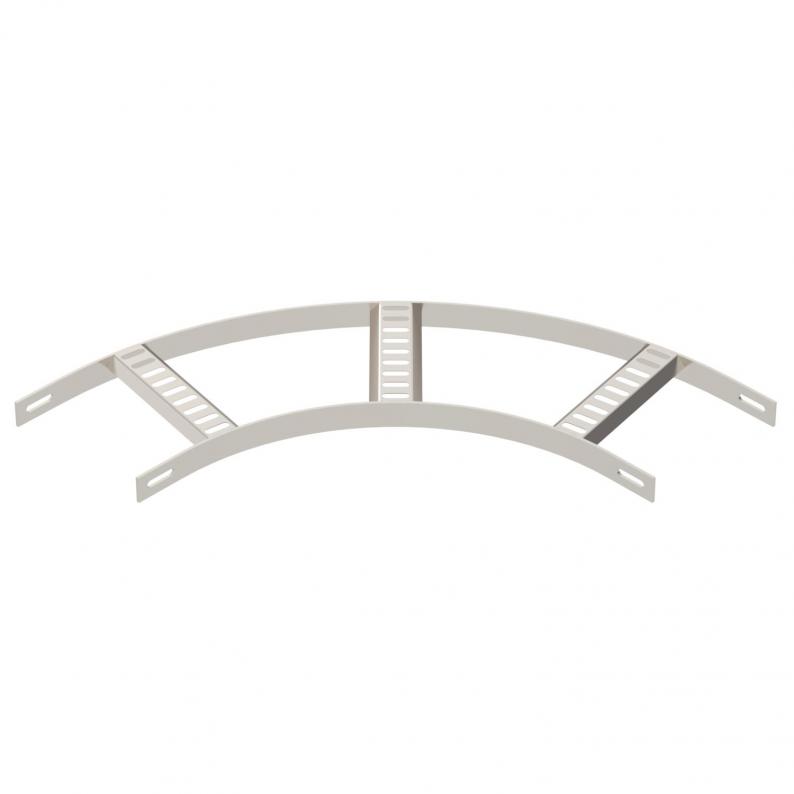

90° bend with trapezoidal rung, A4
Type SLB 90 42 150 A4
|Item no. 7098674
|EAN 4012196515707
Item no. / Type
7098674 / SLB 90 42 150 A4
Width
150 mm
Yan parça kalınlığı
3 mm
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
piece
Description
90° bend for shipbuilding cable ladders, type SL 42, with a side height of 25 mm with welded, perforated trapezoidal rungs which open in a downwards direction.
Connectors should be ordered separately and in the appropriate quantity.
Technical data

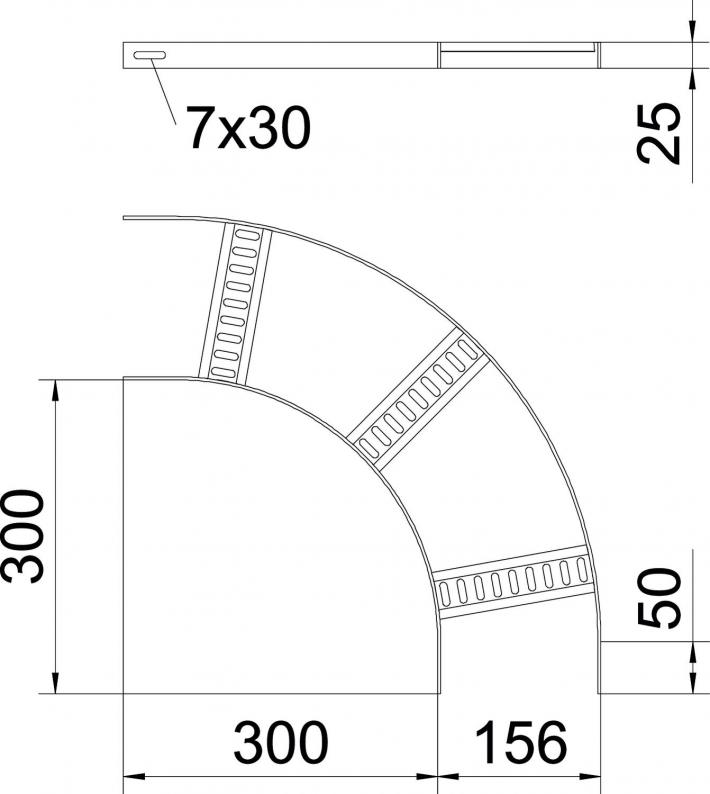

Dimensions
| Width | 150 mm |
|---|---|
| Height | 25 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Yan delik | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | yes |
| Dönüş elemanı (L tipi bağlantı) | 90° |
| Version of the rungs | Profile perforated |
| Hinged | no |
| Side rail version | Flat profile |
| Change of direction | Horizontal |
| Yan parça kalınlığı | 3 mm |
| Boyut | B156mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| Colour | stainless steel |
