90° bend with Z rung, A2
Type SLZB 90 300 A2
|Item no. 7099034
|EAN 4012196515981
Item no. / Type
7099034 / SLZB 90 300 A2
Width
300 mm
Yan parça kalınlığı
5 mm
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
piece
Description

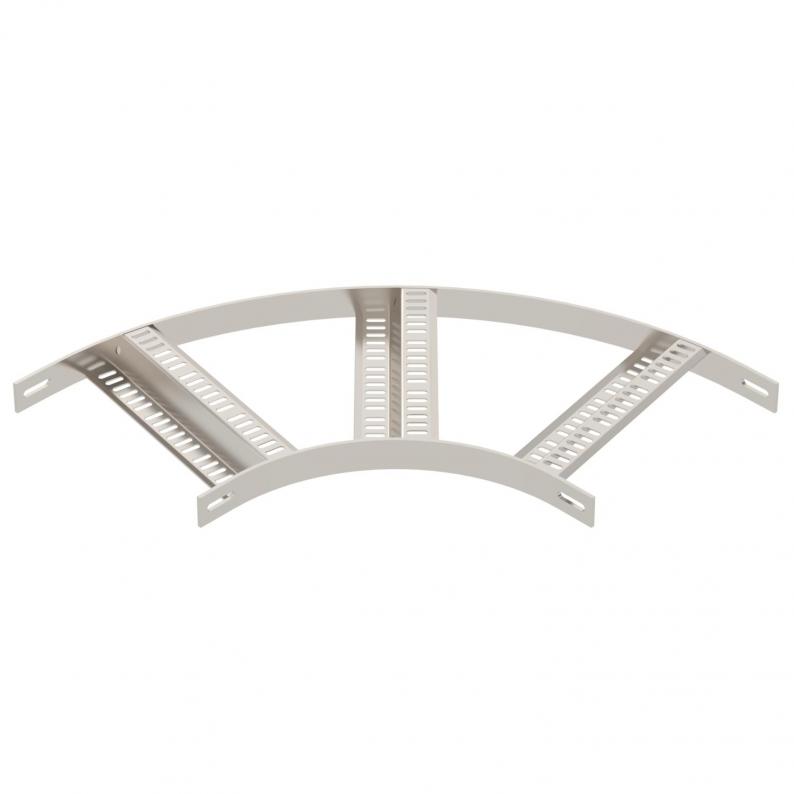

90° bend for shipbuilding cable ladders, type SLZ, with side height of 40 mm with welded, perforated Z rungs.
Connectors should be ordered separately and in the appropriate quantity.
Technical data

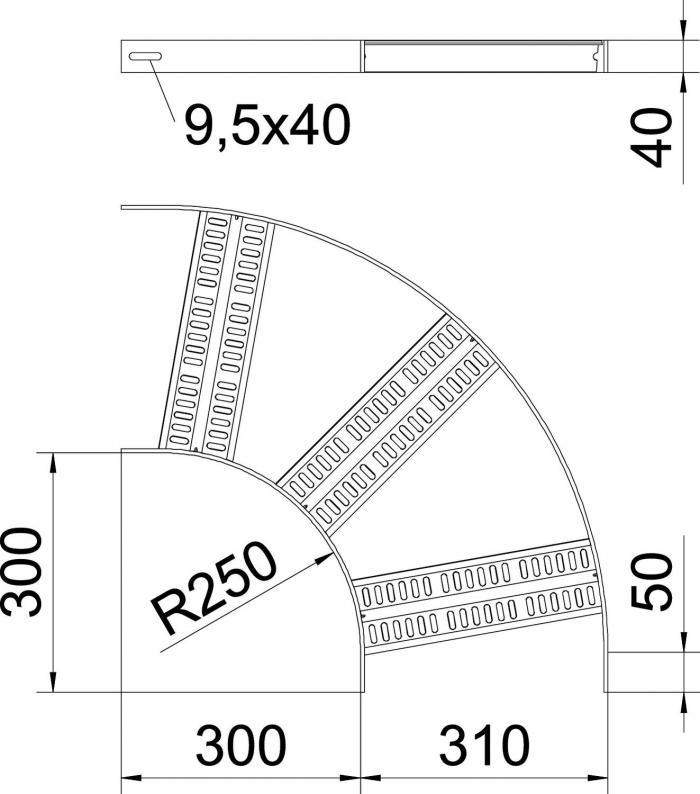

Dimensions
| Width | 300 mm |
|---|---|
| Height | 40 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Yan delik | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | yes |
| Dönüş elemanı (L tipi bağlantı) | 90° |
| Version of the rungs | Profile perforated |
| Hinged | no |
| Side rail version | Flat profile |
| Change of direction | Horizontal |
| Yan parça kalınlığı | 5 mm |
| Boyut | B310mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
