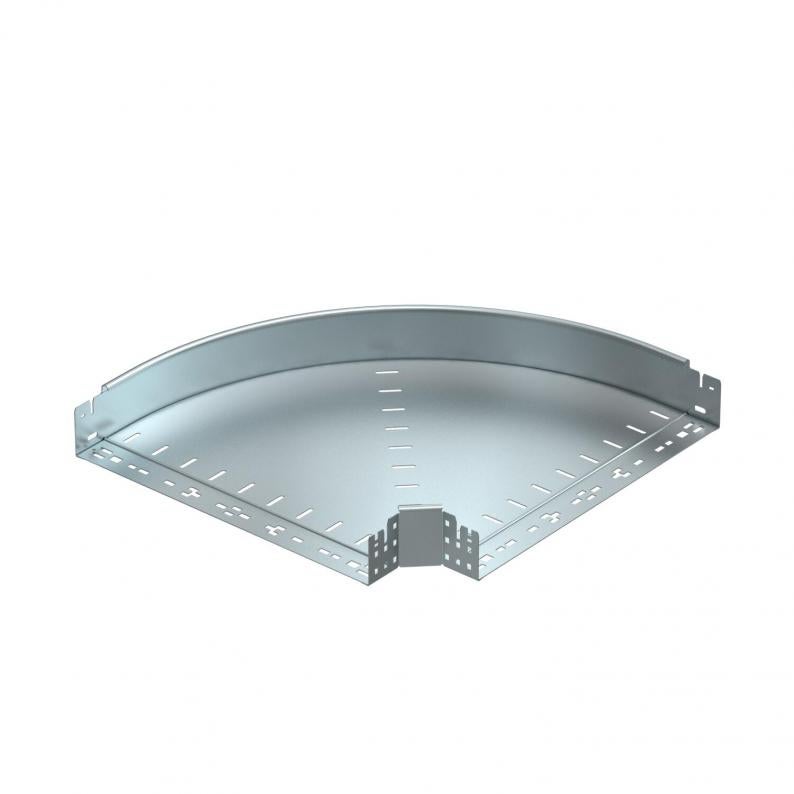

90° Magic bend 85 FS
Type RBM 90 850 FS
|Item no. 6041498
|EAN 4012195879954
Item no. / Type
6041498 / RBM 90 850 FS
Width
500 mm
Surface
Strip galvanised
Material
Steel
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description
90° bend with quick connector system. For all cable tray types of 85 mm side height.
Technical data
Dimensions
| Width | 500 mm |
|---|---|
| Height | 85 mm |
| Dimension B | 500 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Dimension | 85x500 |
| Surface | Strip galvanised |
| Material | Steel |
| Type of connector, cable support system | Click fastening |
