90° Magic bend 85 FT

90° Magic bend 85 FT

Type RBM 90 830 FT
|
Item no. 6041514
|
EAN 4012195879992
Show all variants
Item no. / Type
Width
Colour

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

piece

Description

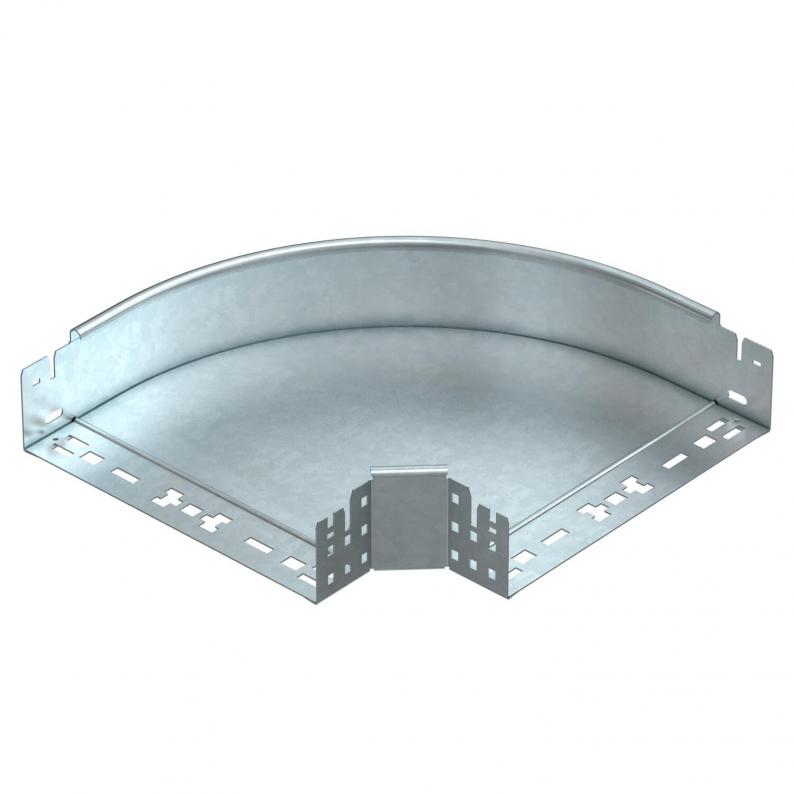

90° bend with quick connector system. For all cable tray types of 85 mm side height.
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • Kablo kanalı, kenar yüksekliği 85 mm
  • DIN EN 61537'ye uygun olarak BET onaylı

Technical data

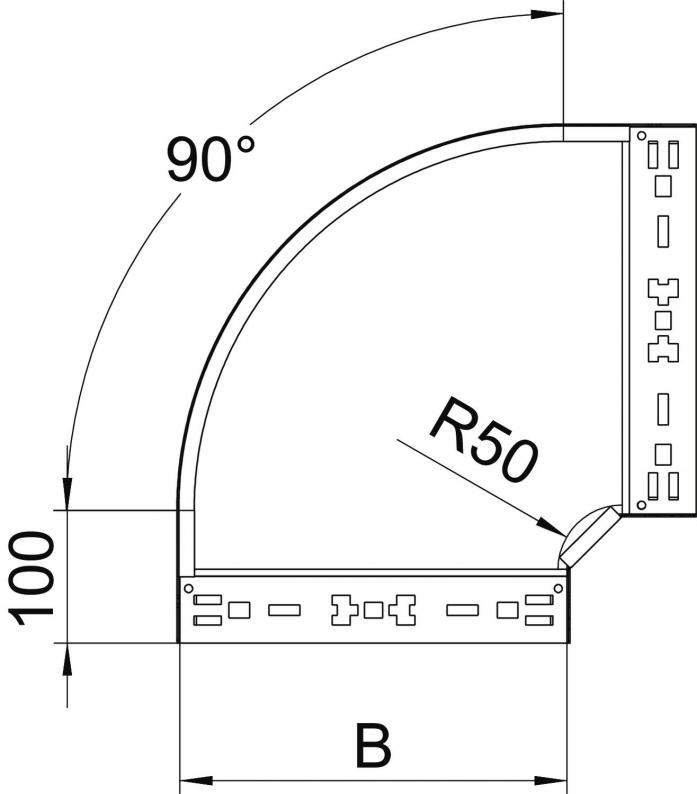

Dimensions

Width300 mm
Height85 mm
Dimension B300 mm

Technical data

Maintain electrical functionsno
Yan delikno
Connector versionIntegrated connector
Wide-span versionno
Paslanmaz çelik, mordanlıno
Plate thickness1,25 mm
Tabanda montaj deliğino
NATO hole patternno
Dönüş elemanı (L tipi bağlantı)90°
Change of directionHorizontal
Boyut85x300
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemClick fastening

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
RBM 90 830 FT
Item no.
6041514
Width
300
Surface
Hot-dip galvanised
Material
Steel
Colour
Çinko grisi
RBM 90 850 FT
Item no.
6041518
Width
500
Surface
Hot-dip galvanised
Material
Steel
RBM 90 860 FT
Item no.
6041520
Width
600
Surface
Hot-dip galvanised
Material
Steel
