90° socket, Italy, single

90° socket, Italy, single

Type STD-IT0 RW0.5
|
Item no. 6120746
|
EAN 4012196467822
Show all variants
Item no. / Type
6120746 / STD-IT0 RW0.5
Number of units
1
Version for
Italy
Colour
Pure white; RAL 9010

Smallest selling unit: 1 piece

piece

Description

Single 90° socket, Italy P17/11, with increased touch protection, with screw terminals, 2-pin, 16 A, 250 V~.
  • INSTITUTO ITALIANO DEL MARCHO DI QUALITÁ, Italy
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

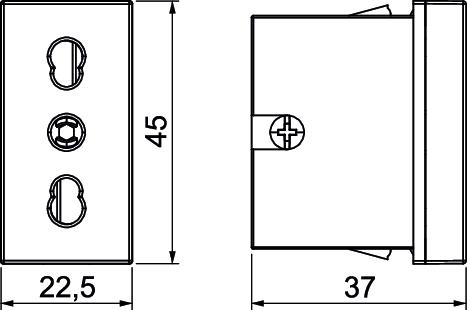

Dimensions

Width22,5 mm
Height45 mm

Technical data

Number of poles2
Hinged coverno
Warning lightno
Halogen-freeyes
Labelling panelno
Number of units1
Protection ratingOther
Nominal current16 A
Nominal voltage250 V
Closableno
Ejection mechanismno
Surge protectionno
Error current protectionno
With fine-wire fuseno
With on/off switchno
Rotated central insertno
Depth37 mm
CoverCentral plate
Printed label/codingWithout printing
Special power supplyWithout special power supply
Surface versionMatt
Transparentno
Socket angle0°
Number of switchable sockets0
With functional lightingno
With orientation lightingno
For more difficult conditions (according to VDE)no
Version forItaly
Mounting typeDevice installation duct
Fastening typeLock
Connection typeScrew terminal
Operating temperature, min.-5 °C
Operating temperature, max.40 °C
Dimension250V, 10/16A
MaterialPolycarbonate
ColourPure white; RAL 9010

Environmental Data

0,0089 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0089 kg CO2e / 1 Piece
