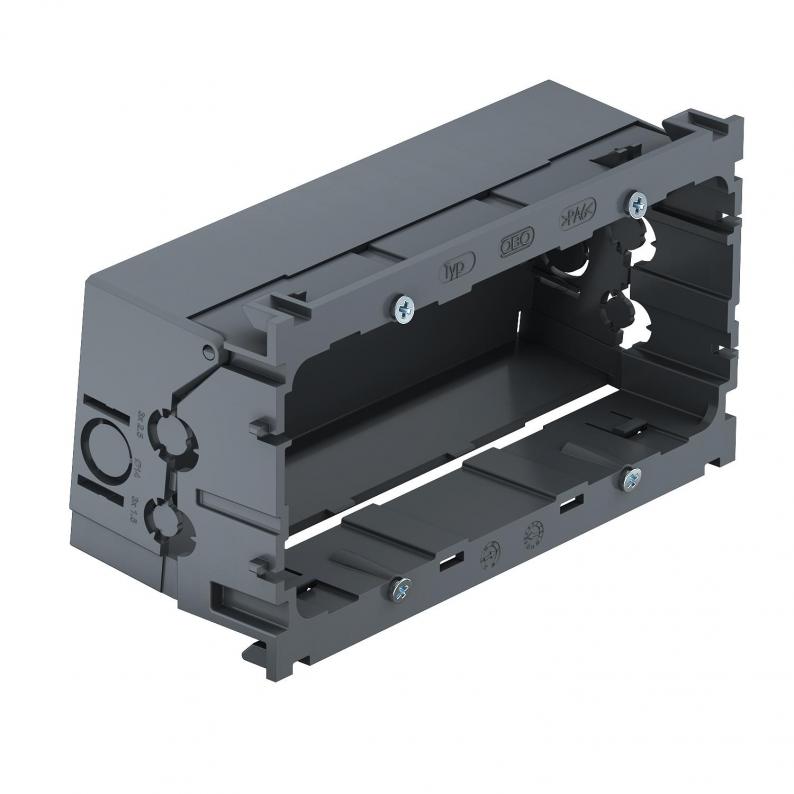

Accessory mounting box 71GD7-2, double
Type 71GD7-2
|Item no. 6288608
|EAN 4012196789146
Item no. / Type
Ünite sayısı
Smallest selling unit: 2 piece
2piece
piece
Description
Front locking accessory mounting box for standard switch ranges for the installation of two individual installation devices or a multiple protective contact socket. With unfolding, and also removable, base for time-saving cable connection and with feed openings for cable diameters of up to 14 mm. Halogen-free version.
Vertical fastening track 60 mm.
Technical data
Dimensions
| Length | 142 mm |
|---|---|
| Width | 76 mm |
| Height | 51 mm |
Technical data
| Halojen İçermez | yes |
|---|---|
| Ünite sayısı | 2 |
| Çekme yükü azaltma imkanı | yes |
| Bağlantı yeri ile | yes |
| Fastening track | Other |
| Box mounting type | Front |
| Accessory mounting type | Bolts |
| Device type | With support ring/support clamp |
| Version for | Closed |
| Boyut | 51x76x142 |
| Material | Polyamide |
| Colour | Iron grey; RAL 7011 |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,3849 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (5)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Ünite sayısı
Accessory mounting type
Item no.
71GD11
1
Bolts
6288532
71GD6
1
Bolts
6288610
71GD7-2
2
Bolts
6288608
Ünite sayısı
71GD11
Item no.
6288532
Ünite sayısı
1
Accessory mounting type
Bolts
71GD6
Item no.
6288610
Ünite sayısı
1
Accessory mounting type
Bolts
71GD7-2
Item no.
6288608
Ünite sayısı
2
Accessory mounting type
Bolts
