Adapter for PV module mounting, trapezoidal roof

Adapter for PV module mounting, trapezoidal roof

Type ADU TPD ALU
|
Item no. 5901904
|
EAN 4012197463236
Show all variants
Item no. / Type
5901904 / ADU TPD ALU

Smallest selling unit: 20 piece

piece

Description

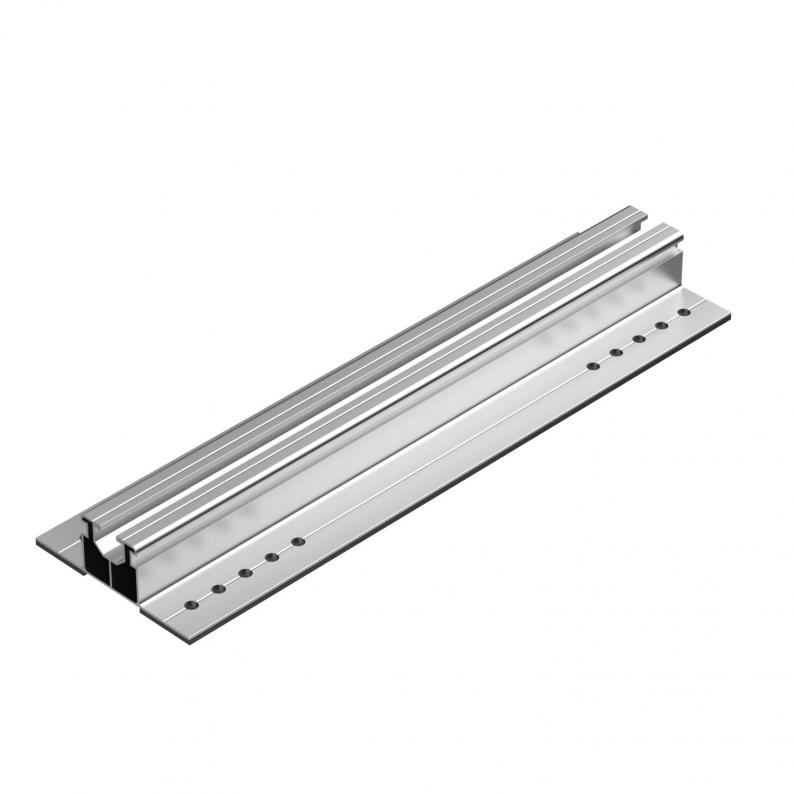

Short profile rail for mounting PV modules on trapezoidal roofs. Suitable for the universal terminal type KLU. With pre-mounted slip-resistant sealing mat, including fastening material.

Technical data

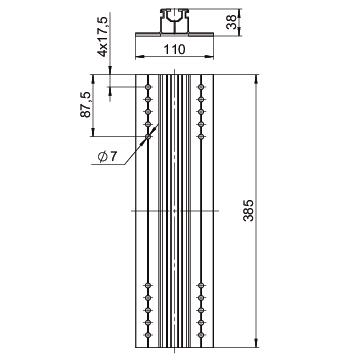

Dimensions

Length385 mm
Width110 mm
Height38 mm

Technical data

Boyut110x35x385
SurfaceBright
MaterialAluminium
Accessoriesyes
Spare partno
Cable duct, integratedno
Cable duct optionalno
Suitable for a type of renewable energy generationPhotovoltaics
Section modulus Sx3680 mm³
Section modulus Sy3760 mm³

Downloads

0 selected

Data sheet (1)
Product images (2)
Tender specifications (1)

Variants

ADU TPD ALU
Item no.
5901904
