Add-on tee 110 FS

Add-on tee 110 FS

Type LAA 1120 R3 FS
|
Item no. 6225910
|
EAN 4012196445486
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

Description

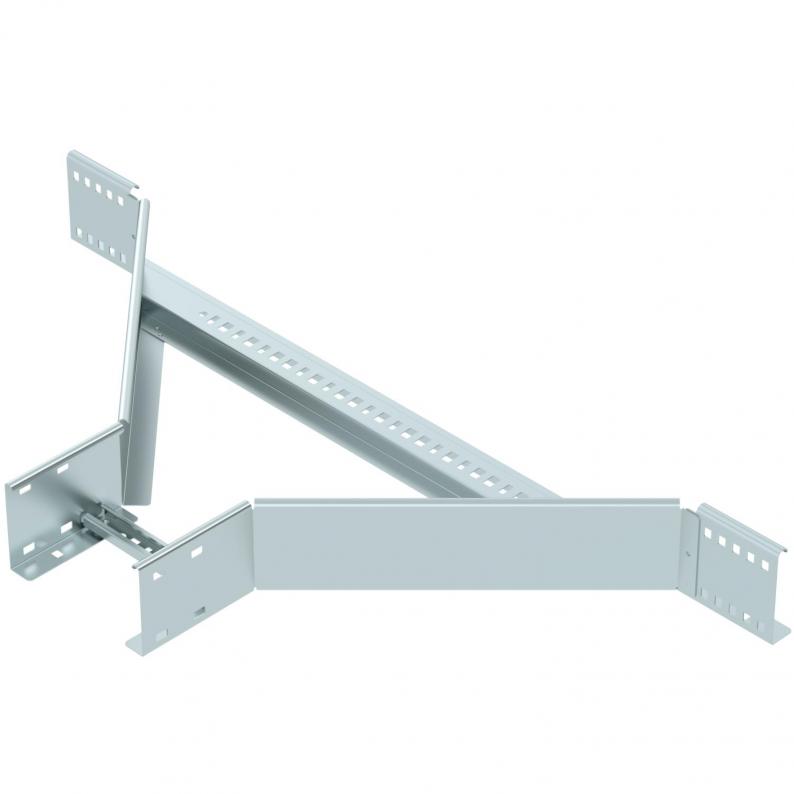

Add-on tee with welded rung for all cable ladder types of 110 mm side height.

Connectors should be ordered separately and in the appropriate quantity.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

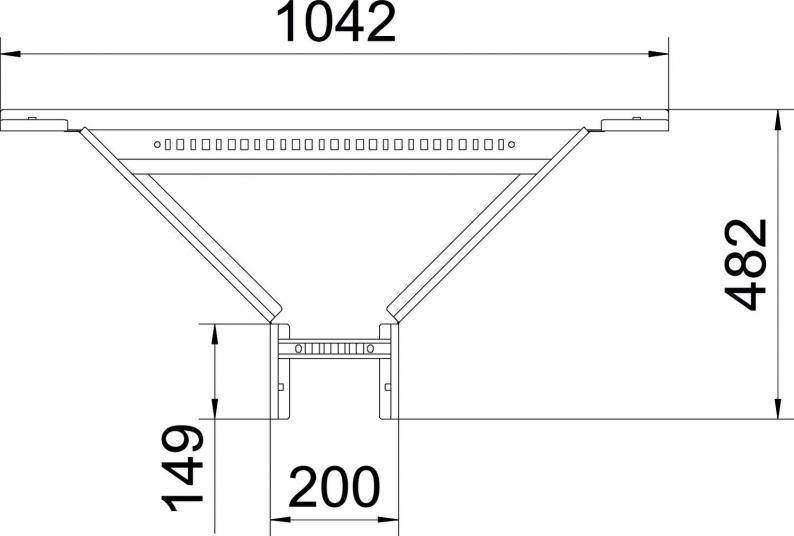

Dimensions

Width200 mm
Height110 mm
Dimension B200 mm
Dimension R300 mm

Technical data

Maintain electrical functionsno
Connector versionWithout connectors
Wide-span versionno
Paslanmaz çelik, mordanlıno
Version of the rungsProfile perforated
Side rail versionFlat profile
Yan parça kalınlığı1,5 mm
Boyut110x200
SurfaceStrip galvanized
MaterialSteel
Colourzinc

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya12,379 kg CO2e / 1 Piece

Accessories

Mounting accessories

Item no. 6216545

Straight connector FS
Type
LVG 110 FS

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
LAA 1120 R3 FS
Item no.
6225910
Width
200
LAA 1130 R3 FS
Item no.
6225912
Width
300
LAA 1140 R3 FS
Item no.
6225914
Width
400
LAA 1150 R3 FS
Item no.
6225916
Width
500
LAA 1160 R3 FS
Item no.
6225918
Width
600
