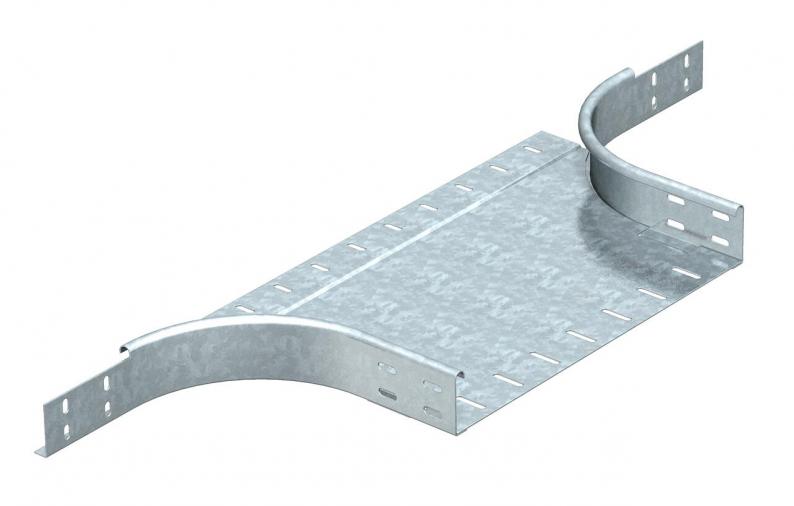

Add-on tee 60 FS
Type RAA 640 FS
|Item no. 7002394
|EAN 4012196212897
Item no. / Type
Width
Colour
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description
Add-on tee for horizontal and vertical use. For all cable tray types of 60 mm side height.
Fastening materials should be ordered separately.
Technical data

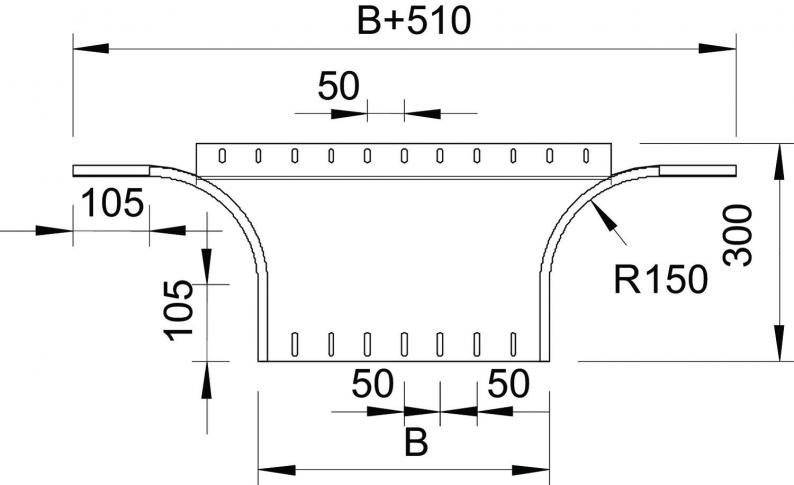

Dimensions
| Width | 400 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 400 mm |
| Dimension R | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| NATO hole pattern | no |
| Material thickness, floor plate | 1,5 mm |
| Dönüş elemanı (L tipi bağlantı) | 90° |
| Change of direction | Horizontal |
| Yan parça kalınlığı | 1,25 mm |
| Boyut | 60x400 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 7,473 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Colour
Item no.
RAA 640 FS
400
Çinko grisi
7002394
RAA 650 FS
500
Çinko grisi
7002416
RAA 660 FS
600
7002432
Width
RAA 640 FS
Item no.
7002394
Width
400
Colour
Çinko grisi
RAA 650 FS
Item no.
7002416
Width
500
Colour
Çinko grisi
RAA 660 FS
Item no.
7002432
Width
600
