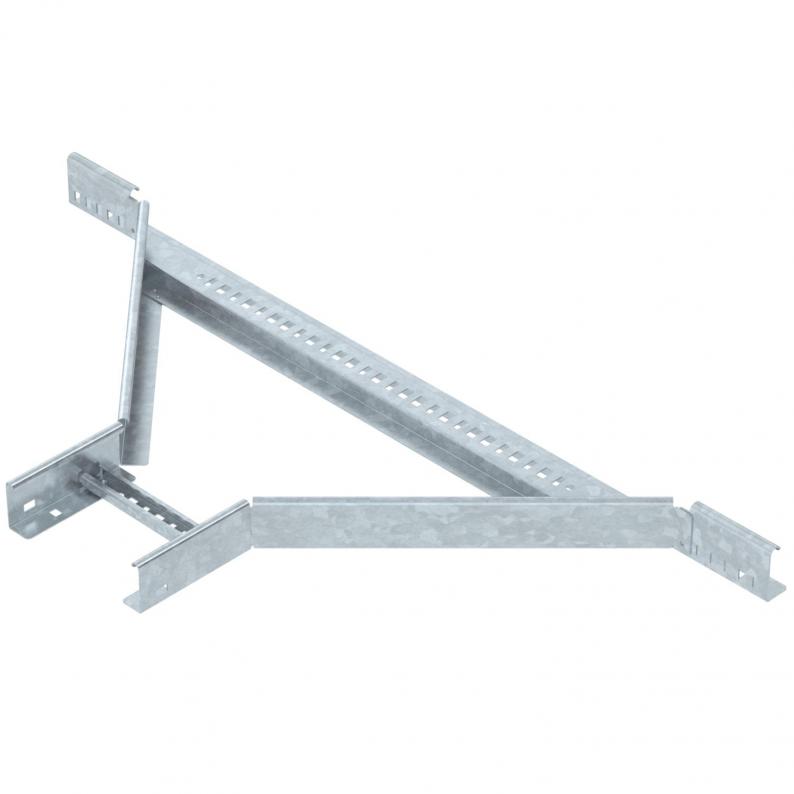

Add-on tee 60 FT

Add-on tee 60 FT

Type LAA 620 R3 FT
|
Item no. 6225870
|
EAN 4012196445431
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

Description

Mounting/branch with welded rung for use in the cable ladder types with a side height of 60 mm.

Connectors should be ordered separately and in the appropriate quantity.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

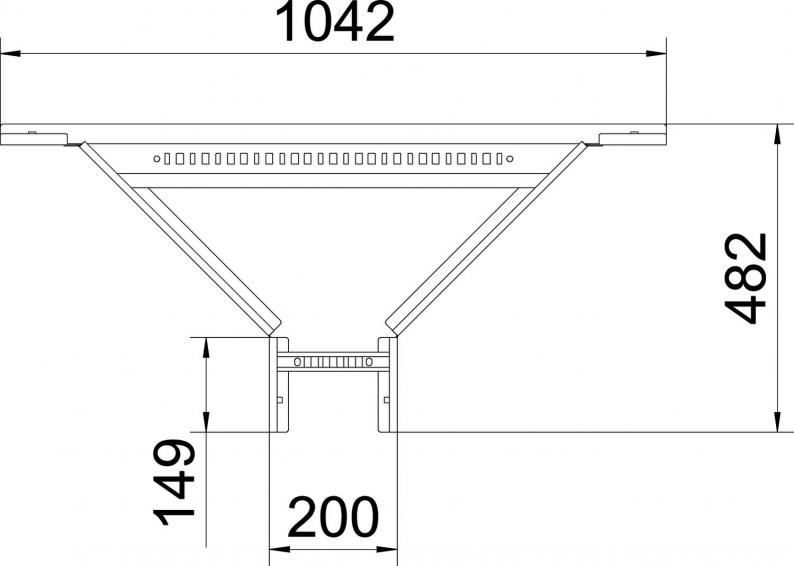

Dimensions

Width200 mm
Height60 mm
Dimension B200 mm
Dimension R300 mm

Technical data

Maintain electrical functionsno
Connector versionWithout connectors
Wide-span versionno
Paslanmaz çelik, mordanlıno
Version of the rungsProfile perforated
Side rail versionFlat profile
Yan parça kalınlığı1,5 mm
Boyut60x200
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya10,1596 kg CO2e / 1 Piece

Accessories

Mounting accessories

Item no. 6208840

Straight connector FS
Type
LVG 60 FS

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
LAA 620 R3 FT
Item no.
6225870
Width
200
LAA 630 R3 FT
Item no.
6225872
Width
300
LAA 640 R3 FT
Item no.
6225874
Width
400
LAA 650 R3 FT
Item no.
6225876
Width
500
LAA 660 R3 FT
Item no.
6225878
Width
600
