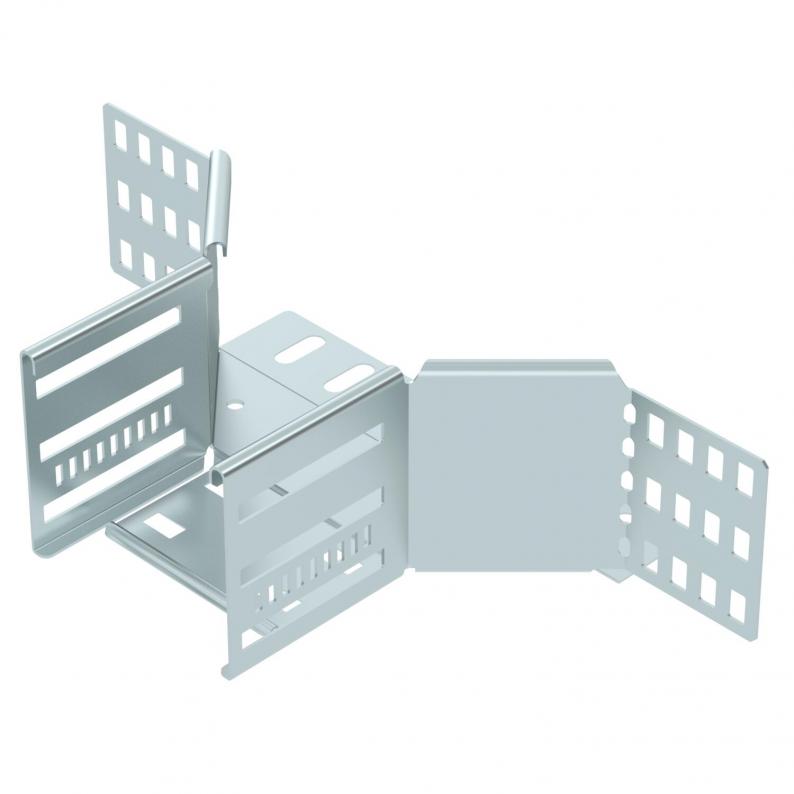

Add-on tee 85 FS

Add-on tee 85 FS

Type RAA 810 FS
|
Item no. 6042131
|
EAN 4012197337377
Show all variants
Item no. / Type
Width
Colour

Smallest selling unit: 1 piece

piece

Description

Add-on tee for the creation of a horizontal branch or cross-over, fitting for lock and screw-on cable trays of side height 85 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

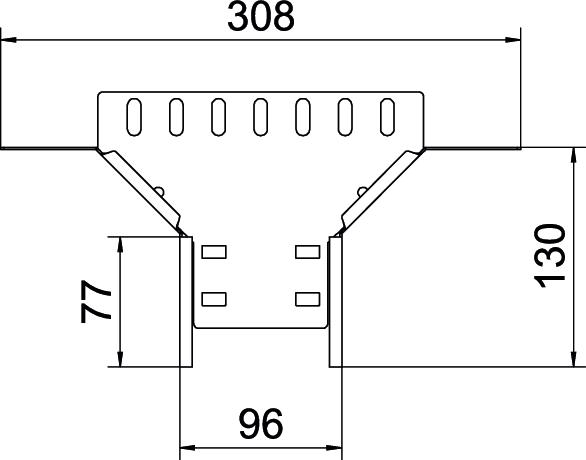

Dimensions

Width100 mm
Height85 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Connector versionIntegrated connector
Wide-span versionno
Paslanmaz çelik, mordanlıno
Plate thickness0,8 mm
NATO hole patternno
Material thickness, floor plate0,8 mm
Çıkış genişliği100 mm
Yan parça kalınlığı1,25 mm
Kullanılabilir sıcaklık aralığı min.-20 °C
Kullanılabilir sıcaklık aralığı maks.120 °C
Boyut85x100
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Type of connector, cable support systemscrewed/clamped
Recommended quantity of bolts14 St.

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya1,5919 kg CO2e / 1 Piece

Accessories

System accessories
Mounting accessories

Item no. 6042401

Cover for add-on tee FS
Type
RAAD 100 FS

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
Colour
RAA 810 FS
Item no.
6042131
Width
100
Colour
Çinko grisi
RAA 820 FS
Item no.
6042133
Width
200
Colour
Çinko grisi
RAA 830 FS
Item no.
6042135
Width
300
Colour
Çinko grisi
RAA 840 FS
Item no.
6042137
Width
400
Colour
Çinko grisi
RAA 850 FS
Item no.
6042141
Width
500
Colour
Çinko grisi
RAA 860 FS
Item no.
6042143
Width
600
Colour
zinc
