Add-on tee 85 FT

Add-on tee 85 FT

Type RAA 810 FT
|
Item no. 6042231
|
EAN 4012197342579
Show all variants
Item no. / Type
Width
Colour

Smallest selling unit: 1 piece

piece

Description

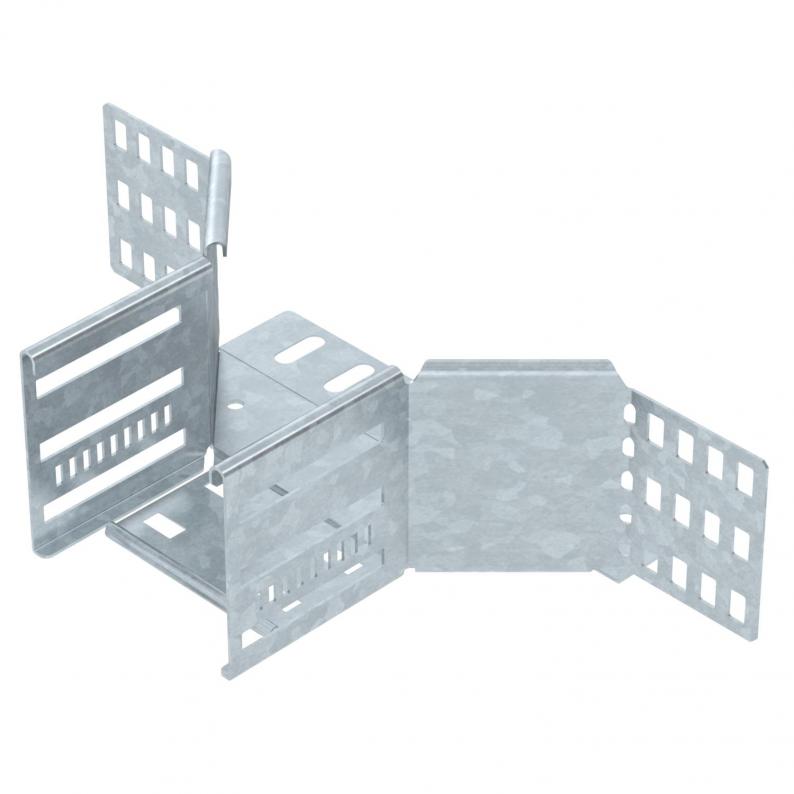

Add-on tee for the creation of a horizontal branch or cross-over, fitting for lock and screw-on cable trays of side height 85 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

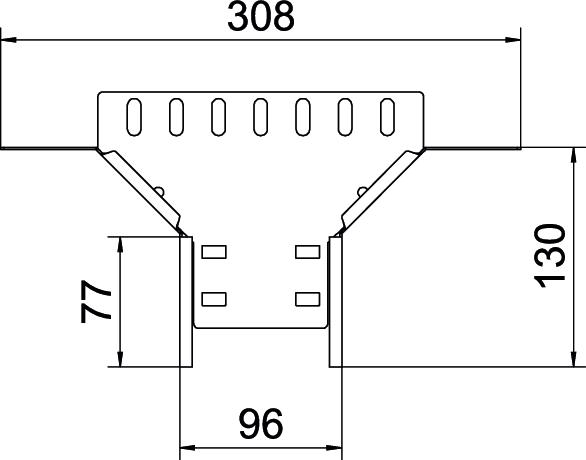

Dimensions

Width100 mm
Height85 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Connector versionIntegrated connector
Wide-span versionno
Paslanmaz çelik, mordanlıno
Plate thickness0,8 mm
NATO hole patternno
Material thickness, floor plate0,8 mm
Çıkış genişliği100 mm
Yan parça kalınlığı1,25 mm
Kullanılabilir sıcaklık aralığı min.-20 °C
Kullanılabilir sıcaklık aralığı maks.120 °C
Boyut85x100
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemscrewed/clamped
Recommended quantity of bolts14 St.

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya1,4817 kg CO2e / 1 Piece

Accessories

System accessories
Mounting accessories

Item no. 6042431

Cover for add-on tee DD
Type
RAAD 100 DD

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
RAA 810 FT
Item no.
6042231
Width
100
Colour
Çinko grisi
RAA 820 FT
Item no.
6042233
Width
200
Colour
Çinko grisi
RAA 830 FT
Item no.
6042235
Width
300
Colour
Çinko grisi
RAA 840 FT
Item no.
6042237
Width
400
Colour
Çinko grisi
RAA 850 FT
Item no.
6042241
Width
500
Colour
Çinko grisi
RAA 860 FT
Item no.
6042243
Width
600
Colour
Çinko grisi
