Add-on tee 85 FT
Type RAA 820 FT
|Item no. 7122213
|EAN 4012196813377
Item no. / Type
Width
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

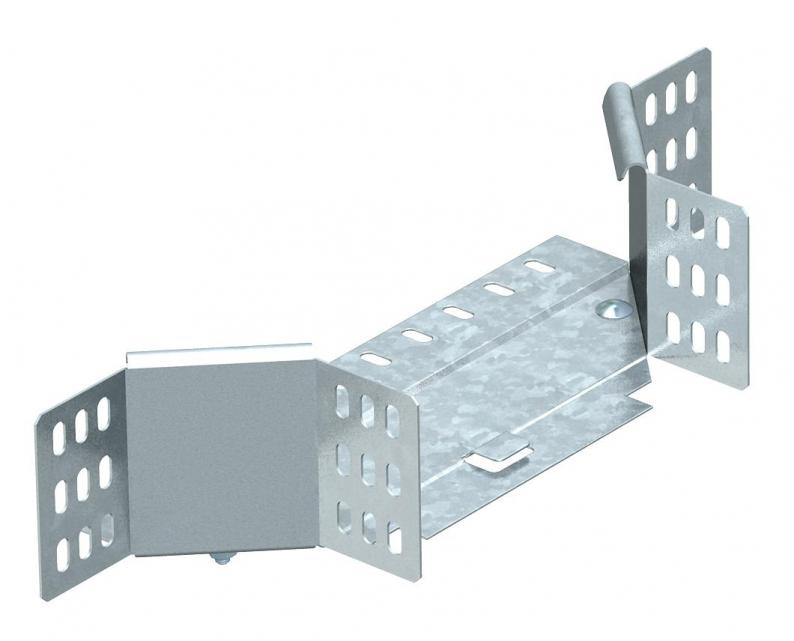

Add-on tee for horizontal and vertical use. For all cable tray types of 85 mm side height.
The fitting is shipped in an unmounted state.
Including appropriate fastening material.
Technical data

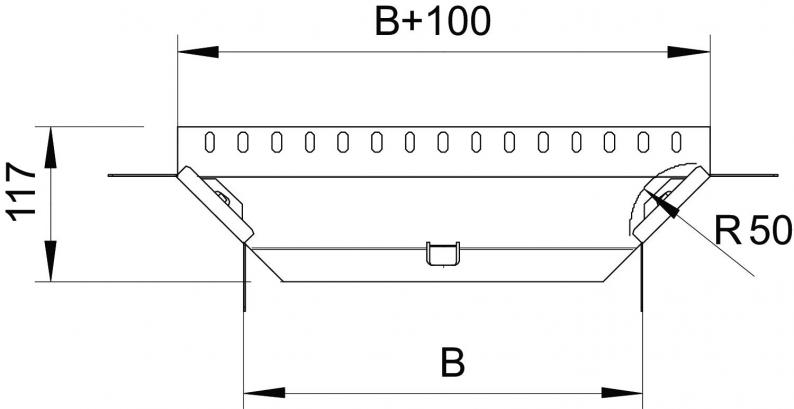

Dimensions
| Width | 200 mm |
|---|---|
| Height | 85 mm |
| Dimension B | 200 mm |
| Dimension R | 50 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Supplied connectors |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| NATO hole pattern | no |
| Material thickness, floor plate | 1 mm |
| Dönüş elemanı (L tipi bağlantı) | 90° |
| Change of direction | Horizontal |
| Yan parça kalınlığı | 1,25 mm |
| Boyut | 85x200 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Item no.
RAA 820 FT
200
7122213
RAA 830 FT
300
7122310
Width
RAA 820 FT
Item no.
7122213
Width
200
RAA 830 FT
Item no.
7122310
Width
300
