Adjustable connector 200 FT
Type GVM 200 FT
|Item no. 6083210
|EAN 4012196947898
Item no. / Type
6083210 / GVM 200 FT
Height
194 mm
Plate thickness
2,5 mm
Colour
zinc
Smallest selling unit: 2 piece
2piece
piece
Description

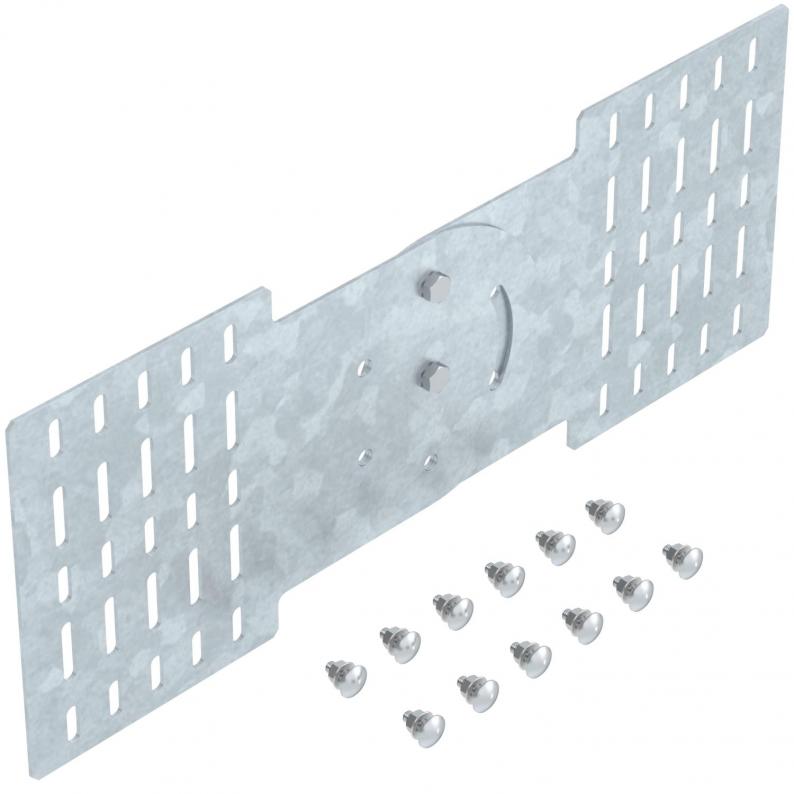

Adjustable connector for vertically rounded connections of cable trays (FT) with a side height of 200 mm.
Technical data

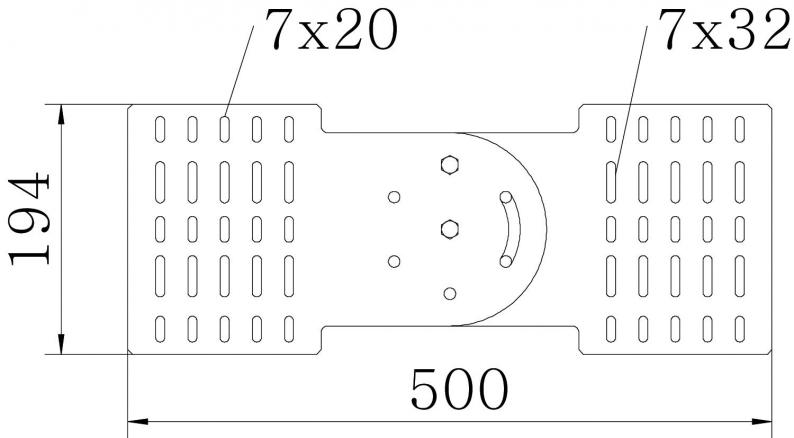

Dimensions
| Length | 500 mm |
|---|---|
| Width | 16 mm |
| Height | 194 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 2,5 mm |
| Kafes kablo kanalı için uygun | no |
| Kablo merdiveni için uygun | no |
| Kablo kanalı için uygun | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | yes |
| Suitable for cable tray system height | 200 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Boyut | 200x500 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 6,731 kg CO2e / 1 Piece |
|---|
