Adjustable connector DD

Adjustable connector DD

Type SV DD
|
Item no. 6066941
|
EAN 4012196084432
Show all variants
Item no. / Type
6066941 / SV DD
Plate thickness
2 mm

Smallest selling unit: 50 piece

piece

Description

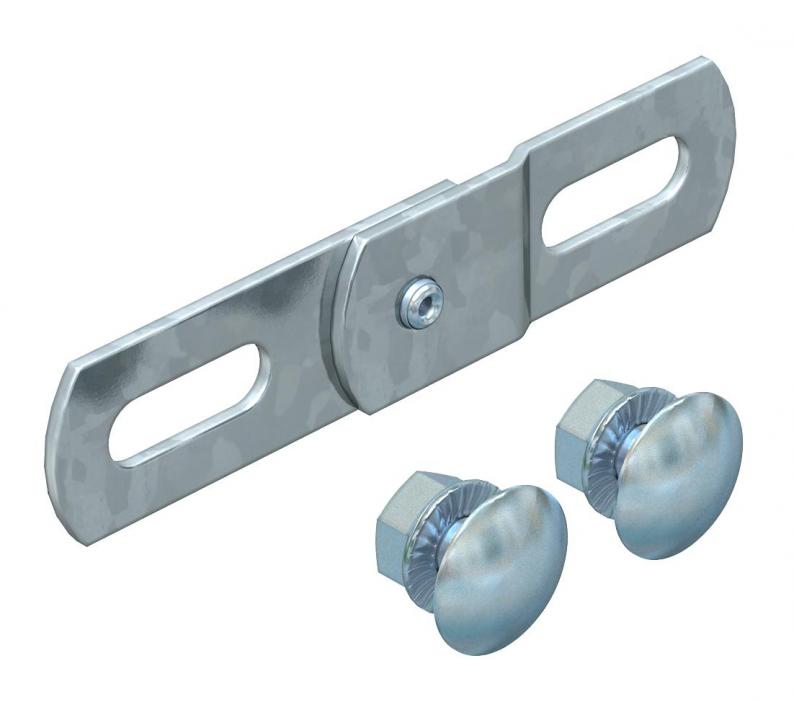

Hinge connector for vertical connections of BKK systems.

Including appropriate fastening material.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • BKK base profile, side height 104 mm
  • BKK base profile, side height 150 mm
  • BKK base profile, side height 200 mm
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Rustproof steel, pickledno
Plate thickness2 mm
Suitable for mesh cable trayno
Suitable for cable ladderno
Suitable for cable trayno
Adjustable connector, horizontalno
Articulated connector, verticalyes

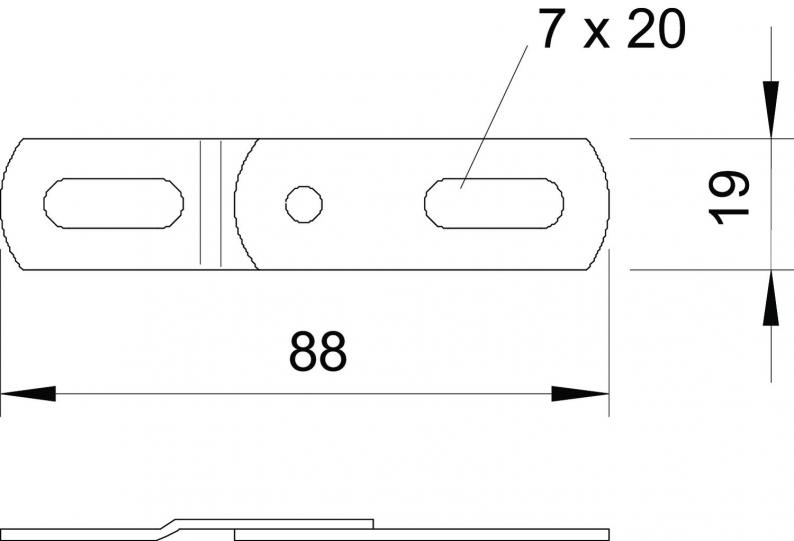

Dimension88 x 19
Connection typeScrew connector
Dimension19x88
SurfaceStrip galvanised zinc/aluminium, Double Dip
MaterialSteel
Colourzinc

Environmental Data

0,1104 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
CO2 Footprint (GWP) Cradle-to-Gate0,1104 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

SV DD
Item no.
6066941
Plate thickness
2
