Adjustable connector FT
Type WRGV 110 FT
|Item no. 6091334
|EAN 4012196299355
Item no. / Type
6091334 / WRGV 110 FT
Height
110 mm
Plate thickness
2,5 mm
Smallest selling unit: 2 piece
2piece
piece
Description
Adjustable connector for wide span cable trays and ladders with a side height of 110 mm.
Including appropriate bolts, washers and nuts.
Technical data

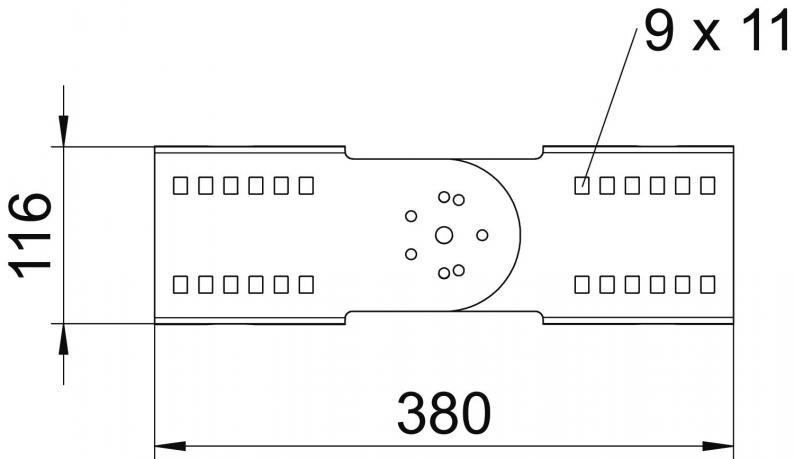

Dimensions
| Length | 380 mm |
|---|---|
| Width | 20 mm |
| Height | 110 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 2,5 mm |
| Kafes kablo kanalı için uygun | no |
| Kablo merdiveni için uygun | yes |
| Kablo kanalı için uygun | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | yes |
| Suitable for cable tray system height | 110 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Boyut | 110x380 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 3,7162 kg CO2e / 1 Piece |
|---|
