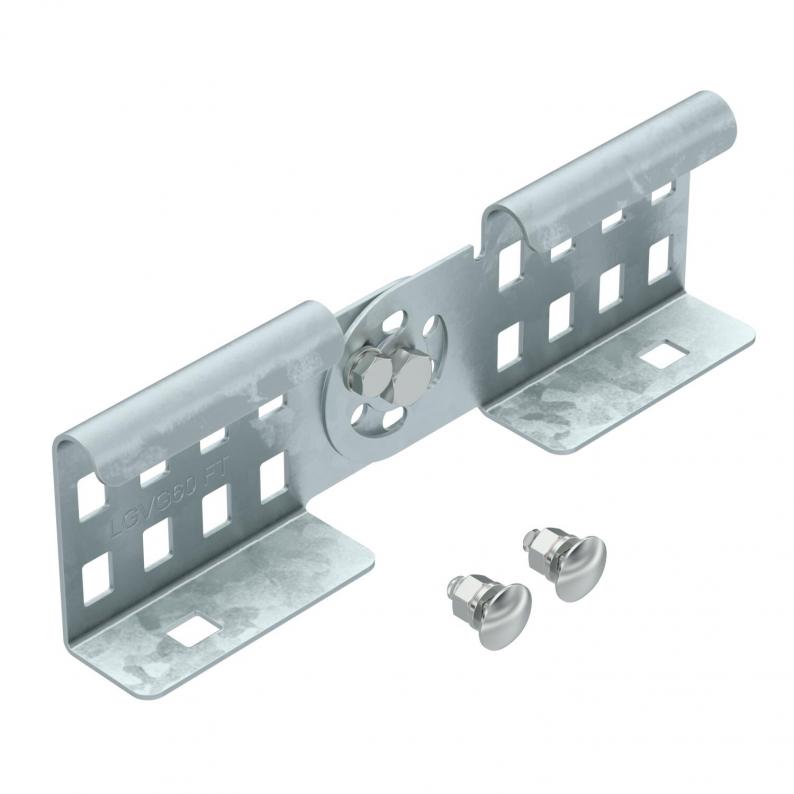

Adjustable connector FT
Type LGVG 60 FT
|Item no. 6208944
|EAN 4012195065630
Item no. / Type
6208944 / LGVG 60 FT
Height
60 mm
Plate thickness
1,5 mm
Smallest selling unit: 10 piece
10piece
piece
Description
Adjustable connector as external connector to join cable ladders and fittings with a side height of 60 mm and continuous rail perforation. Angle can be adjusted vertically.
The bolt fastening ensures the continuity of the equipotential bonding.
Technical data
Dimensions
| Length | 210 mm |
|---|---|
| Width | 28 mm |
| Height | 60 mm |
Technical data
| Paslanmaz çelik, mordanlı | no |
|---|---|
| Plate thickness | 1,5 mm |
| Kafes kablo kanalı için uygun | no |
| Kablo merdiveni için uygun | yes |
| Kablo kanalı için uygun | no |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | yes |
| Ölçü | 64x210 |
| Suitable for cable tray system height | 60 mm |
| Version for | Straight and angle connector |
| Connection type | Screw connector |
| Boyut | 64x210 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,8298 kg CO2e / 1 Piece |
|---|
