Adjustable connector FT
Type RGV 85 FT
|Item no. 7082320
|EAN 4012196230891
Item no. / Type
7082320 / RGV 85 FT
Height
85 mm
Plate thickness
2 mm
Colour
zinc
Smallest selling unit: 10 piece
10piece
piece
Description
Adjustable connector for cable trays with a side height of 85 mm.
Including appropriate fastening material.
Technical data

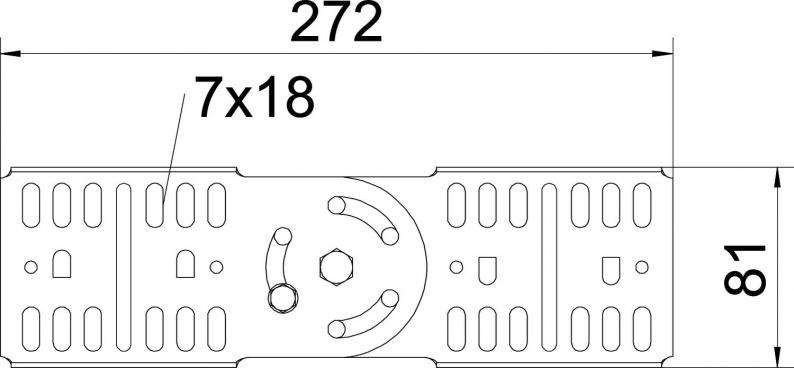

Dimensions
| Length | 272 mm |
|---|---|
| Width | 16 mm |
| Height | 85 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 2 mm |
| Kafes kablo kanalı için uygun | no |
| Kablo merdiveni için uygun | no |
| Kablo kanalı için uygun | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | yes |
| Ölçü | 272 x 81 |
| Suitable for cable tray system height | 85 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Boyut | 85x270 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 1,1388 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Height
Plate thickness
Colour
Item no.
RGV 85 FT
85
2
Çinko grisi
7082320
RGV 85 FT
Item no.
7082320
Height
85
Plate thickness
2
Colour
Çinko grisi
