Air-termination tip

Type 120 A
|
Item no. 5405068
|
EAN 4012195428657

Description

• To be used for Rd 8−10 (corrosion protection)
• With cylinder bolt M6 x 10
• Made of die-cast zinc, bolts made of hot-galvanised steel
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

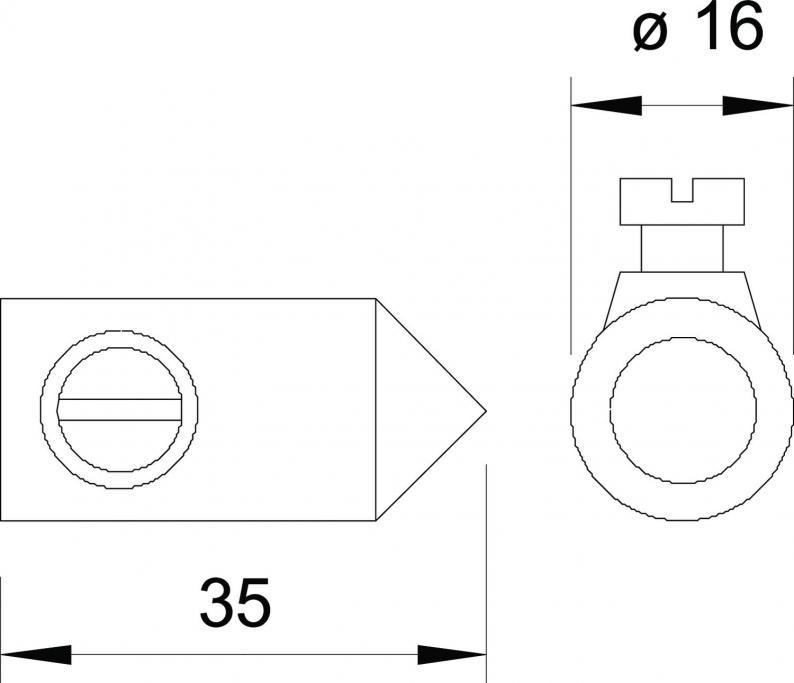

Dimensions

Length35 mm

Technical data

Diameter16 mm
Version forAir-termination tip
UyumlulukRd 8-10 mm
Boyut35mm
SurfaceElectrogalvanized
MaterialDie-cast zinc

Environmental Data

Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya0,1305 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

120 A
Item no.
5405068
