Aluminium pipe bend, with thread
Type SBM16W ALU
|Item no. 2046042
|EAN 4012195926184
Item no. / Type
Thread
Smallest selling unit: 15 piece
15piece
piece
Description

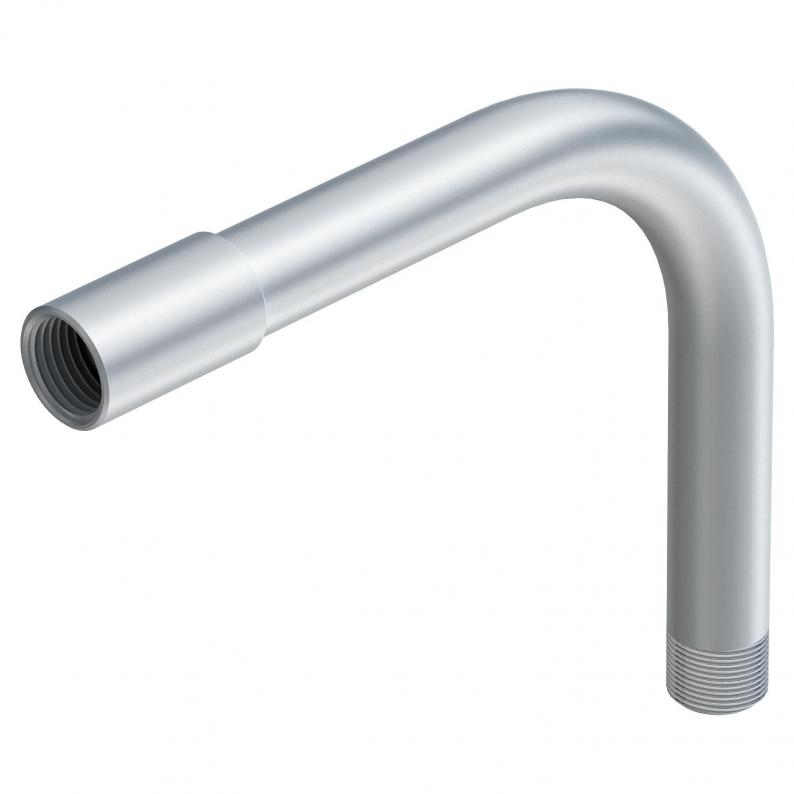

90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.
One connection sleeve is already screwed onto each pipe bend.
Technical data

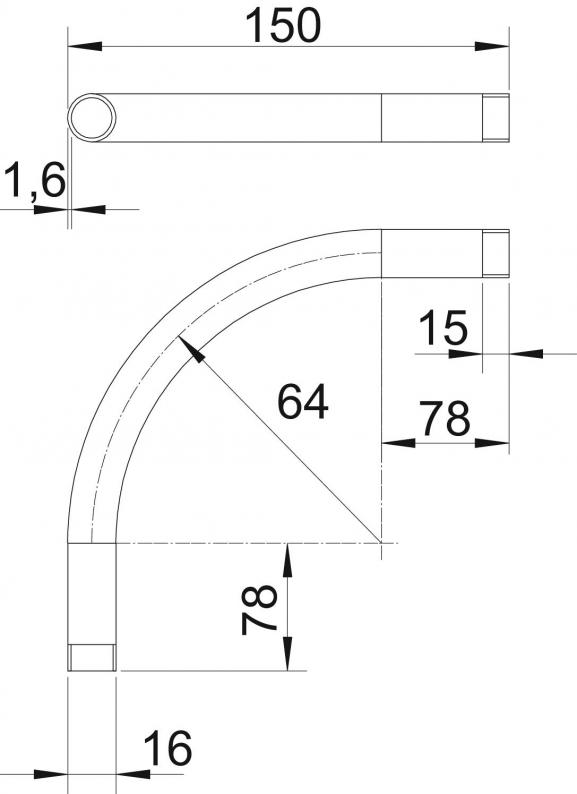

Dimensions
| Dimension A | 78 mm |
|---|---|
| Dimension B | 150 mm |
| Dimension t | 1,6 mm |
| Dimension m (mm) | M16 |
| Dimension l | 15 mm |
| Dimension R | 64 mm |
| Dimension D | 16 mm |
Technical data
| Halogen-free | no |
|---|---|
| Thread | M16x1,5 |
| Angle of the bend | 90 ° |
| Polished surface | no |
| With sleeve | yes |
| Flexible | no |
| Brushed surface | no |
| With inspection opening and lid | no |
| Two-part | no |
| For nominal pipe diameter | 16 mm |
| Version for | Thread |
| ROHS-conformant | yes |
| Permitted temperature range, min. | -45 °C |
| Permitted temperature range, max. | 250 °C |
| Dimension | M16x1,5 |
| Material | Aluminium |
| Product series | Metal pipes |
