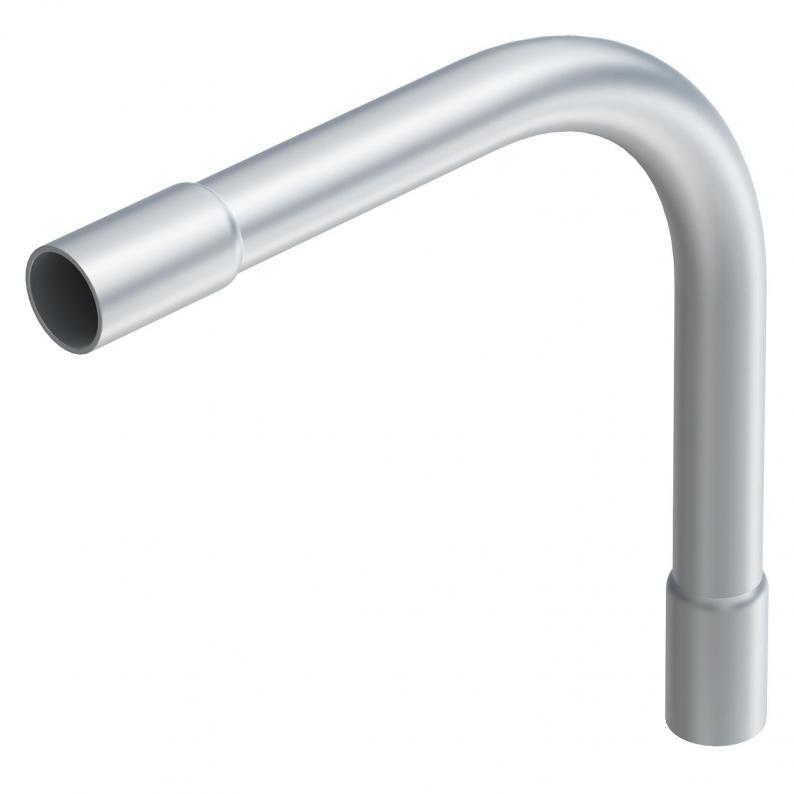

Aluminium pipe bend, without thread
Type SB16W ALU
|Item no. 2046012
|EAN 4012195925866
Item no. / Type
For nominal pipe diameter
Smallest selling unit: 15 piece
15piece
piece
Description
90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
Technical data

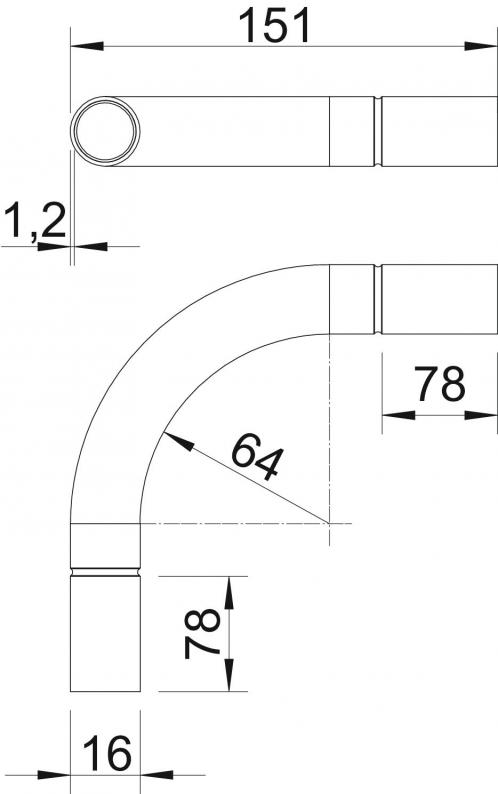

Dimensions
| Dimension A | 78 mm |
|---|---|
| Dimension d | 16,2 mm |
| Dimension B | 151 mm |
| Dimension t | 1,2 mm |
| Dimension m (mm) | M16 |
| Dimension l | 28 mm |
| Dimension R | 56 mm |
| Dimension D | 18,6 mm |
Technical data
| Halogen-free | no |
|---|---|
| Angle of the bend | 90 ° |
| Polished surface | no |
| With sleeve | yes |
| Flexible | no |
| Brushed surface | no |
| With inspection opening and lid | no |
| Two-part | no |
| For nominal pipe diameter | 16 mm |
| Version for | Connector |
| Permitted temperature range, min. | -45 °C |
| Permitted temperature range, max. | 250 °C |
| Dimension | Ø16mm |
| Material | Aluminium |
