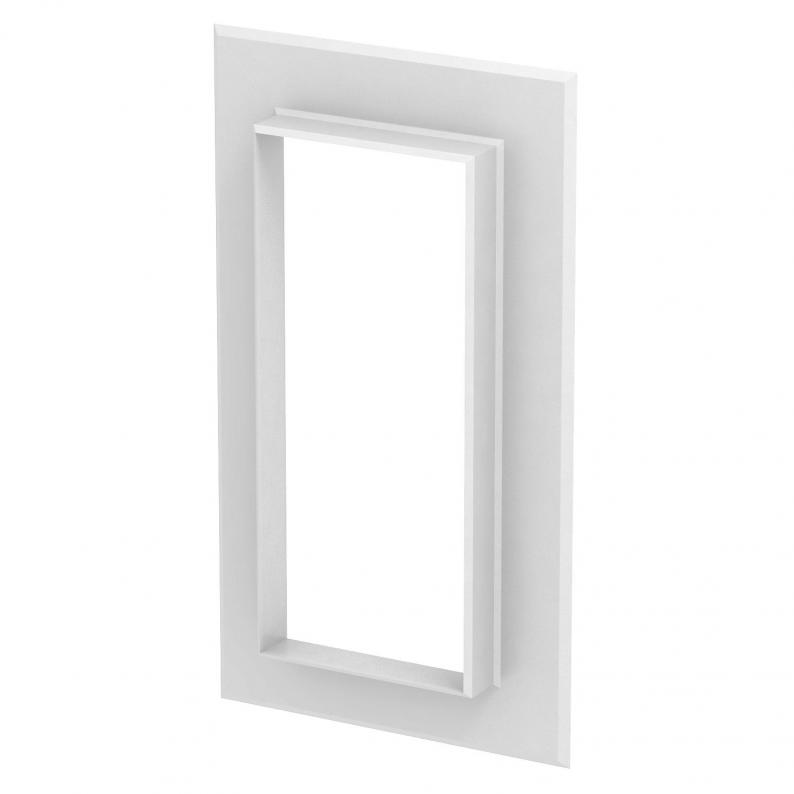

Aluminium wall cover, closed, 90210

Aluminium wall cover, closed, 90210

Type G-AWAG90210RW
|
Item no. 6279050
|
EAN 4012195667599
Show all variants
Item no. / Type
6279050 / G-AWAG90210RW
Width
278 mm
Height
158 mm
Colour
Pure white; RAL 9010

Smallest selling unit: 1 piece

piece

Description

Wall cover, closed, to close wall penetrations during panel mounting. In the respective dimensions, it is also suitable as a ceiling cover for ISS service poles.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length25 mm
Width278 mm
Height158 mm

Technical data

Halogen-freeyes
Version forUniversal
Mounting type of the trunkingWall
Trunking depth90 mm
Dimension158x278x25
MaterialAluminium
ColourPure white; RAL 9010
Product seriesRapid 80®

Environmental Data

5,2656 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
CO2 Footprint (GWP) Cradle-to-Gate5,2656 kg CO2e / 1 Piece
CO₂ Footprint (GWP)5,2656 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Instructions and Aid (2)
Product images (3)
Tender specifications (1)

Variants

G-AWAG90210RW
Item no.
6279050
Width
278
Height
158
Colour
Pure white; RAL 9010
