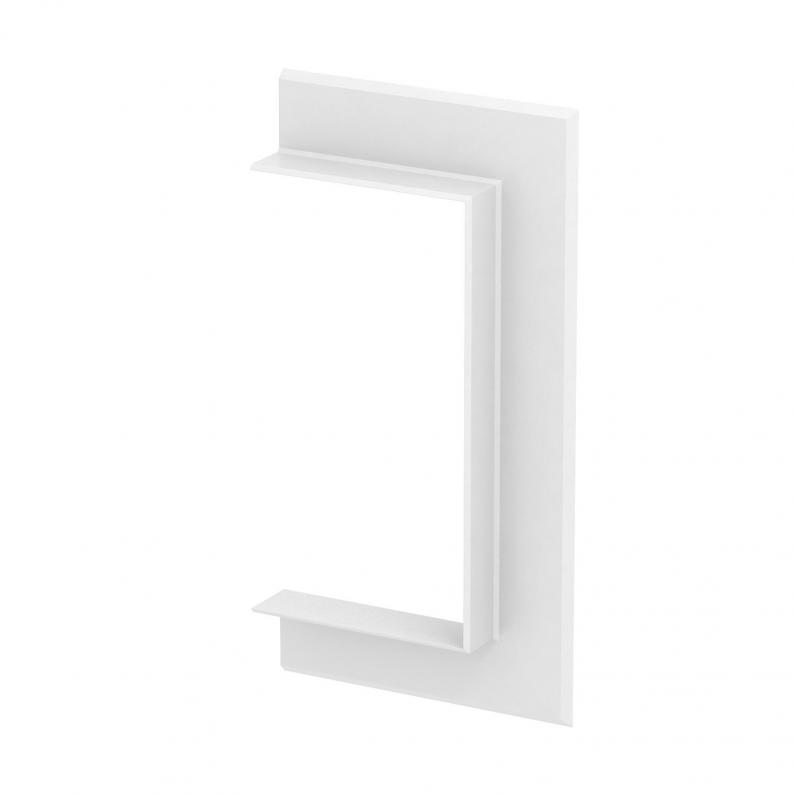

Aluminium wall cover, open, 90170

Aluminium wall cover, open, 90170

Type G-AWAO90170RW
|
Item no. 6279000
|
EAN 4012195667261
Show all variants
Item no. / Type
6279000 / G-AWAO90170RW
Width
238 mm
Height
124 mm
Colour
Pure white; RAL 9010

Smallest selling unit: 1 piece

piece

Description

Wall cover, open, to close wall penetrations during wall mounting.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

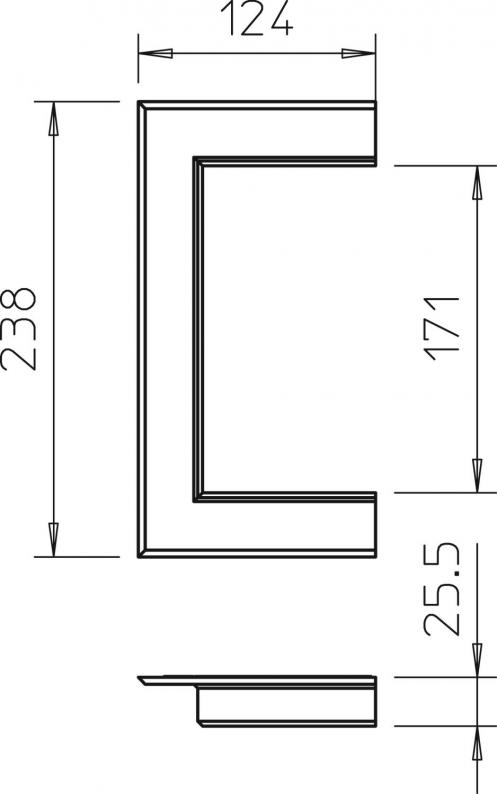

Technical data

Dimensions

Length25 mm
Width238 mm
Height124 mm

Technical data

Halojen İçermezyes
Version forUniversal
Mounting type of the trunkingWall
Kanal derinliği90 mm
Boyut124x238x25
MaterialAluminium
ColourPure white; RAL 9010

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya3,0655 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

G-AWAO90170RW
Item no.
6279000
Width
238
Height
124
Colour
Pure white; RAL 9010
