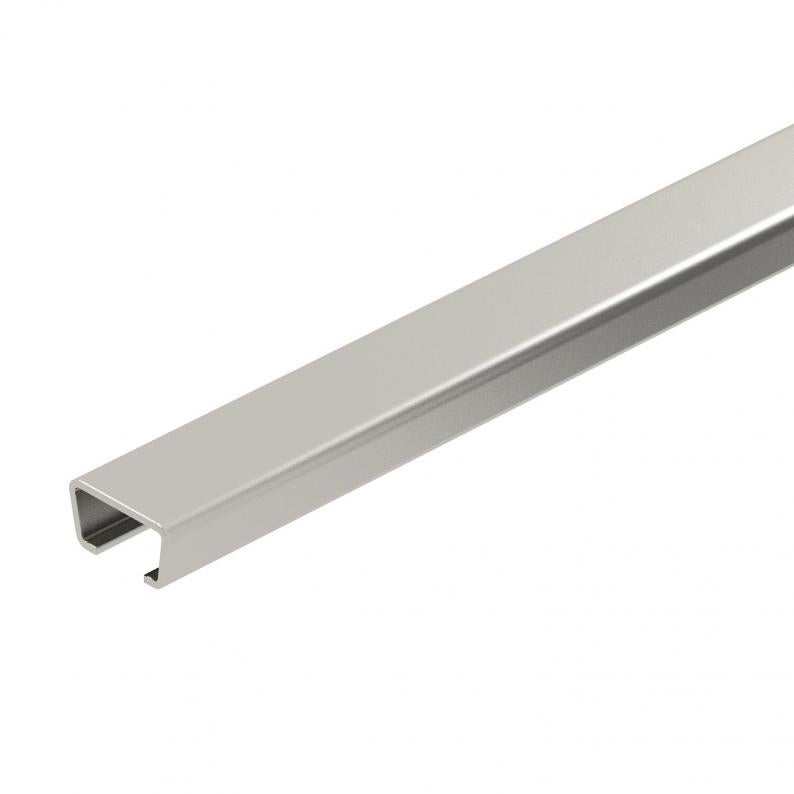

AML3518 anchor rail, slot 16.5 mm, A2, unperforated

AML3518 anchor rail, slot 16.5 mm, A2, unperforated

Type AML3518UP2000A2
|
Item no. 1112007
|
EAN 4012196470723
Show all variants
Item no. / Type
Length
Width
Height
Material thickness

Smallest selling unit: 2 m

m

Description

Central C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 16.5 mm for C profile
  • Clamp clip for C profile rail, slot width 16–17 mm
  • CO₂ footprint (PCF)

Technical data

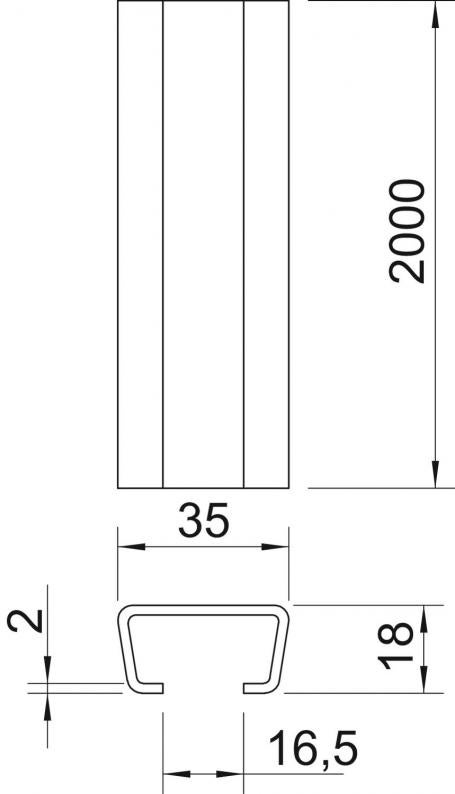

Dimensions

Length2000 mm
Width35 mm
Height18 mm
Dimension L2000 mm

Technical data

Maintain electrical functionsno
Slot width16,5 mm
Material thickness1,5 mm
Static value A1,48 cm²
Static value ly0,6 cm⁴
Static value lz2,33 cm⁴
Static value Wy0,54 cm³
Static value Wz1,33 cm³
Profile shapeC profile
Type of perforationWithout
With perforationno
Breakableno
With toothingno
Version forSingle profile
Dimension2000x35x18
SurfaceBright, treated
MaterialStainless steel 1.4301

Environmental Data

4,2834 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate4,2834 kg CO2e / 1 Meter
CO₂ Footprint (GWP)4,2834 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Metres
Declared Unit Quantity (LCA)1

Accessories

Mounting accessories

Item no. 1147060

Slide nut ZL
Type
ACMSN M8 ZL

Smallest selling unit: 100 piece

piece

Item no. 1148060

Hammer-head bolt ZL
Type
ACMHB M8x30 ZL

Smallest selling unit: 50 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Material thickness
AMS3518UP2000A2
Item no.
1110005
Length
2000
Width
35
Height
18
Material thickness
2
Surface
Bright, treated
Material
Stainless steel 1.4301
AML3518UP2000A2
Item no.
1112007
Length
2000
Width
35
Height
18
Material thickness
1,5
Surface
Bright, treated
Material
Stainless steel 1.4301
