Angle profile WP40/65
Type WP 40 65 5000 FT
|Item no. 6373070
|EAN 4012196199693
Item no. / Type
6373070 / WP 40 65 5000 FT
Length
5000 mm
Plate thickness
4 mm
Smallest selling unit: 5 m
5m
m
Description

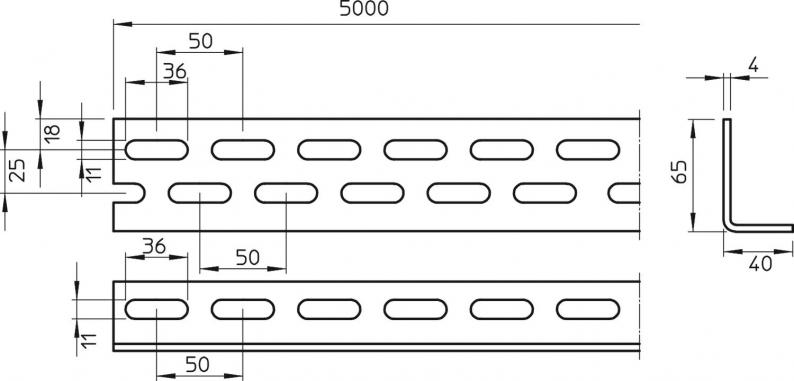

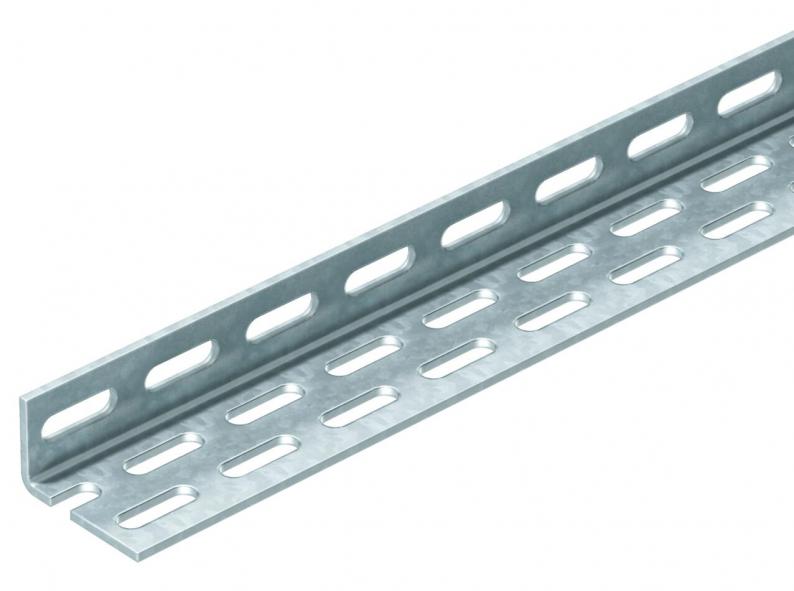

Perforated angle profile for creation of special support structures.
The angle profile can be used to create pendant suspensions.
Technical data
Dimensions
| Length | 5000 mm |
|---|---|
| Width | 65 mm |
| Height | 40 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Yan delik | yes |
| Plate thickness | 4 mm |
| Tabanda montaj deliği | yes |
| Delik türü | 2 sides perforated |
| Breakable | no |
| With toothing | no |
| Version for | Single profile |
| Profile shape | L profile |
| Boyut | 40x65x5000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 5,926 kg CO2e / 1 Meter |
|---|
