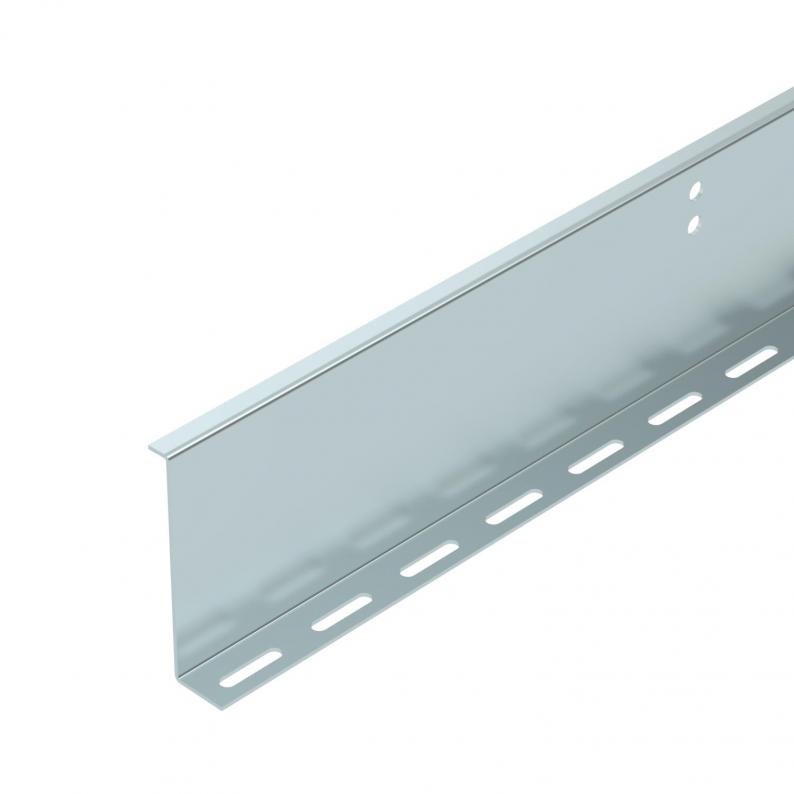

Barrier strip, Z-shaped 110 FS
Type TSG110Z BKRS FS
|Item no. 6062391
|EAN 4012196147779
Item no. / Type
Length
Height
Smallest selling unit: 3 m
3m
m
Description
Barrier strip for the BKRS walkable cable tray system. Fastening with truss-head bolts M6 x 12 in the base perforation.
For widths of 200 mm or more, a barrier strip with a maximum compartment size of 220 mm should be used.
For widths of 500 mm or more, two barrier strips with a maximum compartment size of 220 mm should be used.
Technical data

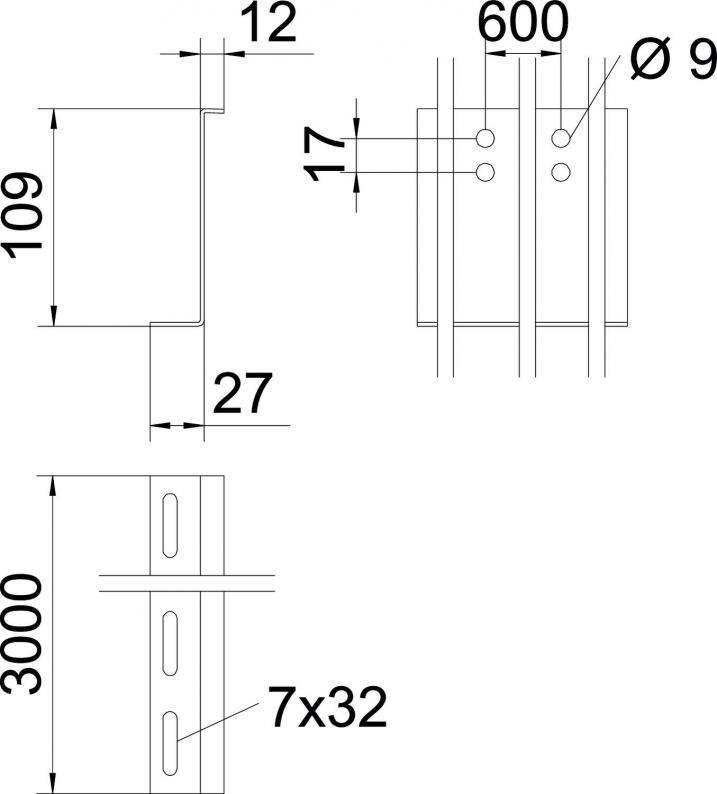

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 34 mm |
| Height | 109 mm |
| Dimension L | 3000 mm |
| Dimension H | 110 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 2 mm |
| Kafes kablo kanalı için uygun | no |
| Kablo merdiveni için uygun | no |
| Kablo kanalı için uygun | yes |
| Fastening perforation (ETIM) | yes |
| Version for | Miscellaneous |
| Fastening type | Screw-on |
| Boyut | 110x2x3000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 4,8834 kg CO2e / 1 Meter |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 6406122
Truss-head bolt with flange nut FType
FRSB 6x12 F
Smallest selling unit: 100 piece
100piece
piece
