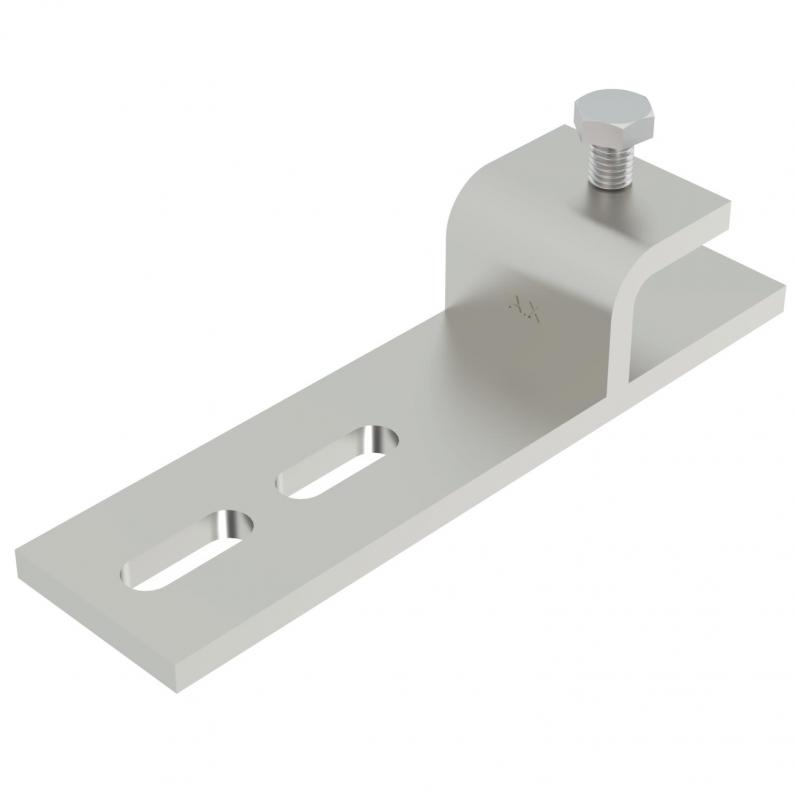

Beam clamp, horizontal BFK 153 A2
Type BFK 153 33 A2
|Item no. 6003873
|EAN 4012196049561
Item no. / Type
6003873 / BFK 153 33 A2
Dimension b
101 mm
Smallest selling unit: 10 piece
10piece
piece
Description
Beam clamp for clamping on the steel girder.
The cable support system attached to the beam clamp runs horizontally.
Technical data

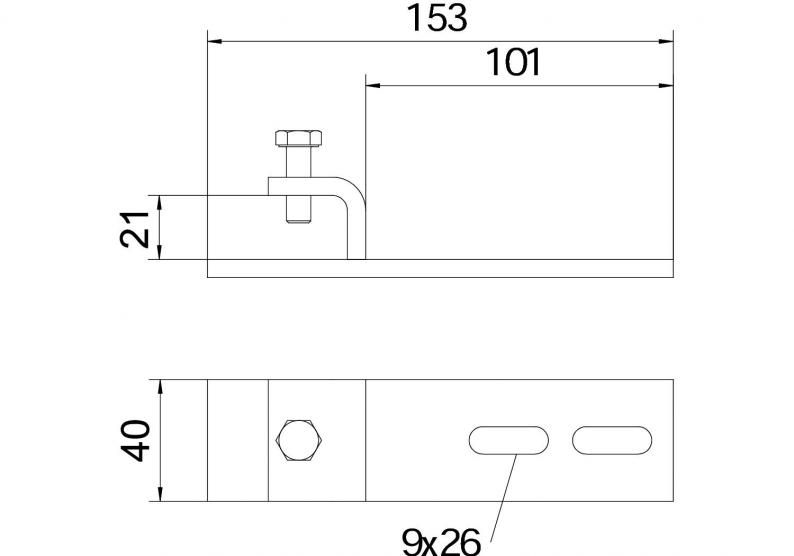

Dimensions
| Width | 153 mm |
|---|---|
| Height | 20 mm |
| Dimension B | 153 mm |
| Dimension b | 101 mm |
| Dimension B1 | 101 mm |
Technical data
| Suitable for profile shapes | C profile |
|---|---|
| Version for | Miscellaneous |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 1,9526 kg CO2e / 1 Piece |
|---|
