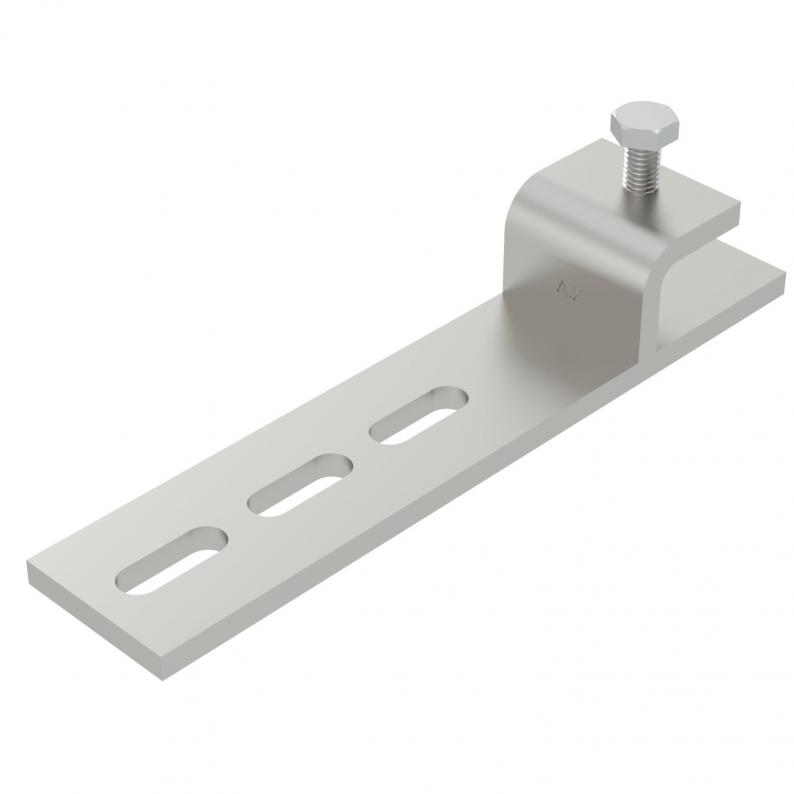

Beam clamp, horizontal BFK 187 A2
Type BFK 187 33 A2
|Item no. 6003879
|EAN 4012196049929
Item no. / Type
6003879 / BFK 187 33 A2
Dimension b
135 mm
Smallest selling unit: 10 piece
10piece
piece
Description
Beam clamp for clamping on the steel girder.
The cable support system attached to the beam clamp runs horizontally.
Technical data

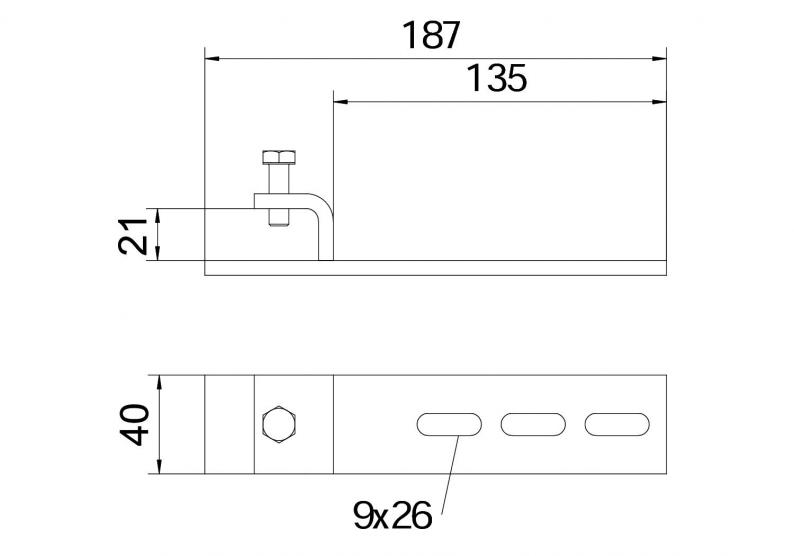

Dimensions
| Width | 187 mm |
|---|---|
| Height | 20 mm |
| Dimension B | 187 mm |
| Dimension b | 135 mm |
| Dimension B1 | 135 mm |
Technical data
| Suitable for profile shapes | C profile |
|---|---|
| Version for | Miscellaneous |
| Boyut | 187X33 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 2,2726 kg CO2e / 1 Piece |
|---|
