Beam clamp, horizontal BFK 187 FT

Beam clamp, horizontal BFK 187 FT

Type BFK 187 33 FT
|
Item no. 6003892
|
EAN 4012196079919
Show all variants
Item no. / Type
6003892 / BFK 187 33 FT
Dimension b
135 mm

Smallest selling unit: 10 piece

piece

Description

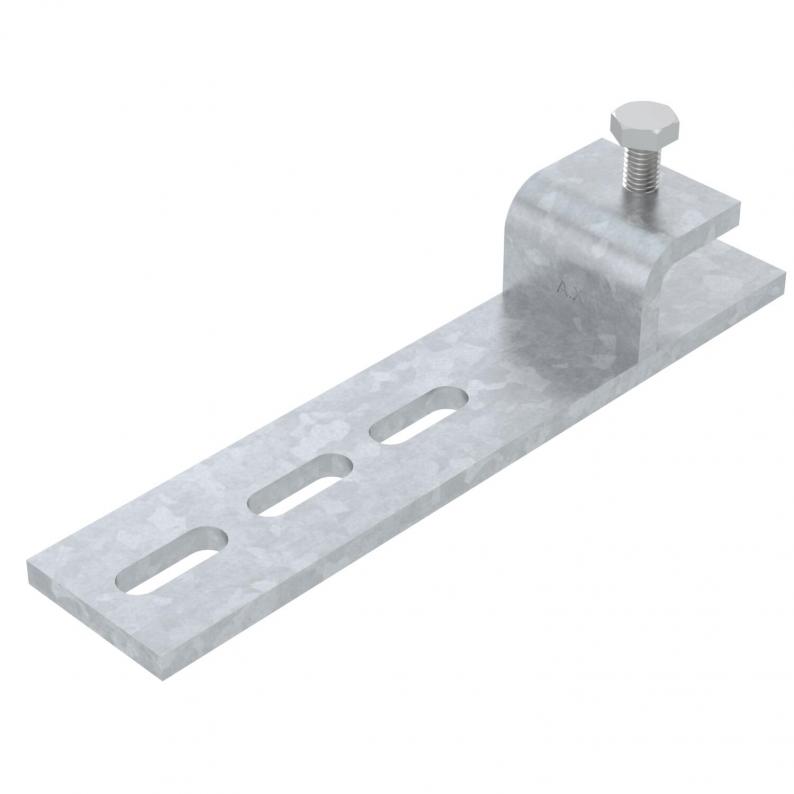

Beam clamp for clamping on the steel girder.

The cable support system attached to the beam clamp runs horizontally.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

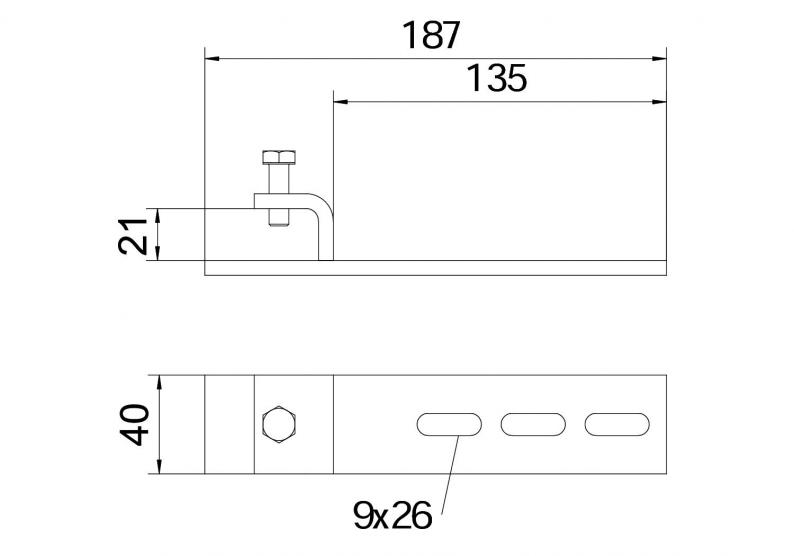

Dimensions

Width187 mm
Height20 mm
Dimension B187 mm
Dimension b135 mm
Dimension B1135 mm

Technical data

Suitable for profile shapesC profile
Version forMiscellaneous
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya0,999 kg CO2e / 1 Piece
