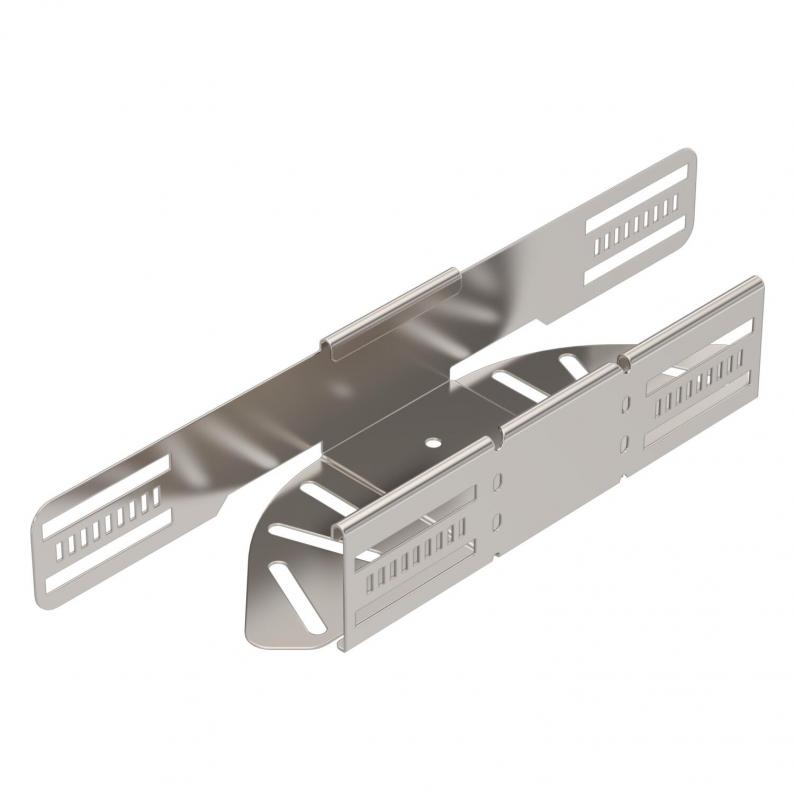

Bend, angle-adjustable, 60 A4
Type RB W 610 A4
|Item no. 6037170
|EAN 4012197341404
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description
Angle-adjustable bend for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Adjustable angle 0–90°. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
Technical data

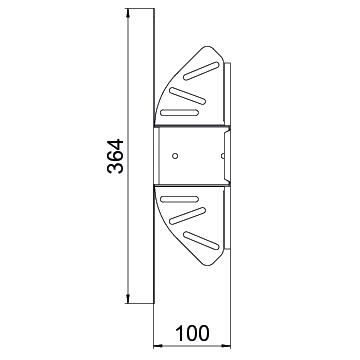

Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension L | 364 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Material thickness, floor plate | 1 mm |
| Bend (angle) | Adjustable |
| Change of direction | Horizontal |
| With cover | no |
| Type | Adjustable bend_complete |
| Rail thickness | 1,25 mm |
| Permitted temperature range, min. | -20 °C |
| Permitted temperature range, max. | 120 °C |
| Dimension | 60x100 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| Colour | stainless steel |
| Type of connector, cable support system | Screwed |
| Recommended quantity of bolts | 10 St. |
| Product series | RKSM Series, SKSM Series, SKS Series |
Environmental Data
4,1794 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 4,1794 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 4,1794 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
Accessories
System accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 6037572
Cover, angle-adjustable bend A4Type
RBD W 100 A4
Smallest selling unit: 1 piece
1piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Colour
Item no.
RB W 610 A4
100
Bright, treated
Stainless steel 1.4571
stainless steel
6037170
RB W 620 A4
200
Bright, treated
Stainless steel 1.4571
stainless steel
6037174
RB W 630 A4
300
Bright, treated
Stainless steel 1.4571
stainless steel
6037176
RB W 640 A4
400
Bright, treated
Stainless steel 1.4571
stainless steel
6037178
RB W 650 A4
500
Bright, treated
Stainless steel 1.4571
stainless steel
6037180
RB W 660 A4
600
Bright, treated
Stainless steel 1.4571
stainless steel
6037182
