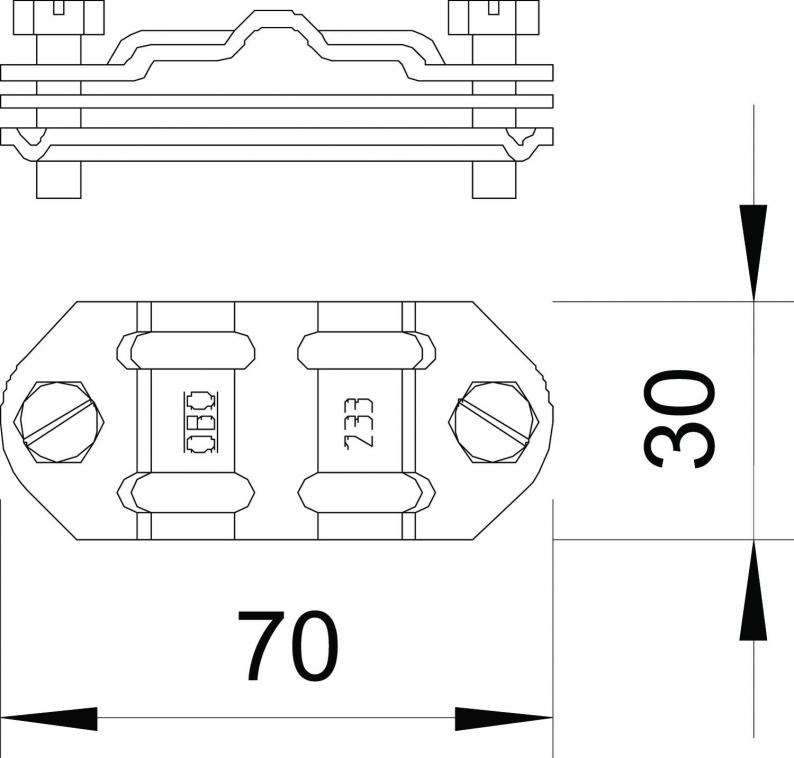

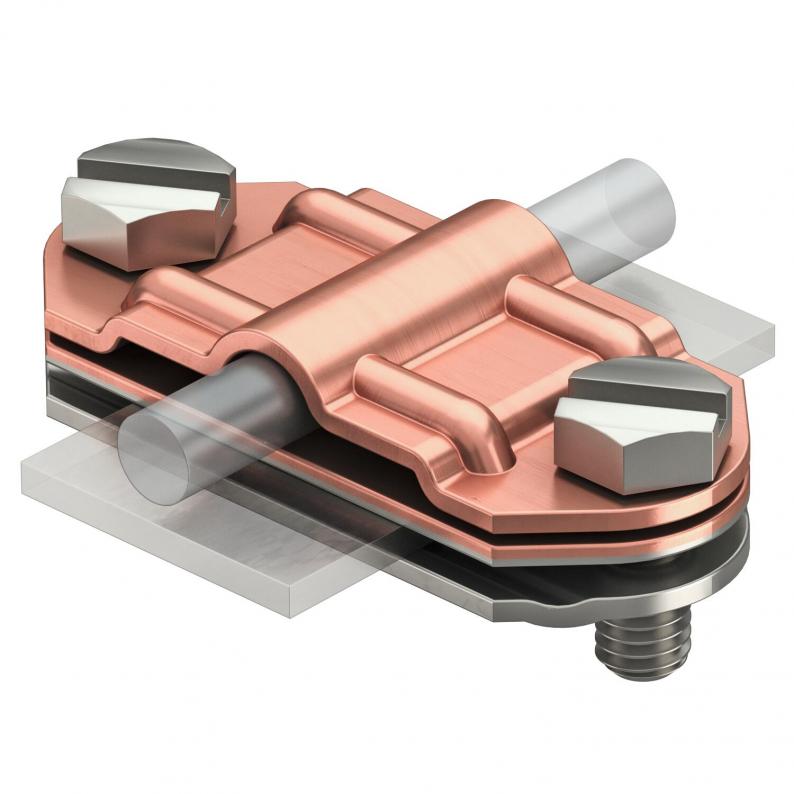

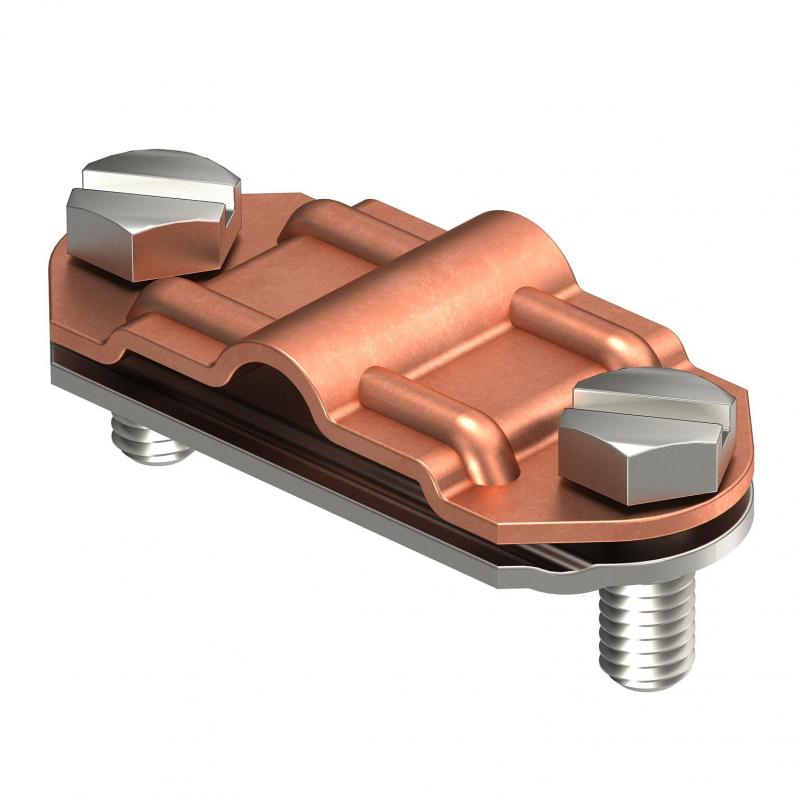

Bi-metal separating piece for Rd 8−10 and FL 30−40 mm
Type 233 A ZV
|Item no. 5336503
|EAN 4012195424932
Item no. / Type
5336503 / 233 A ZV
Uyumluluk
Rd 8-10 x FL30-40 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• Fit: Rd 8-10 x FL 30-40, FL 30 x FL 30-40
• With 2 hexagonal bolts M8 x 20, stainless steel (VA)
• Intermediate plate, aluminium/copper
• Top section copper, bottom section stainless steel
• With 2 hexagonal bolts M8 x 20, stainless steel (VA)
• Intermediate plate, aluminium/copper
• Top section copper, bottom section stainless steel
Technical data
Technical data
| Ayırma plakası | yes |
|---|---|
| İki metalli bağlantı elemanı | yes |
| Suitable for connection | Miscellaneous |
| Alt parça malzemesi | VA |
| Üst parça malzemesi | Cu |
| Uyumluluk | Rd 8-10 x FL30-40 mm |
| Boyut | FL30x8-10mm |
| Material | Copper |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,6154 kg CO2e / 1 Piece |
|---|
