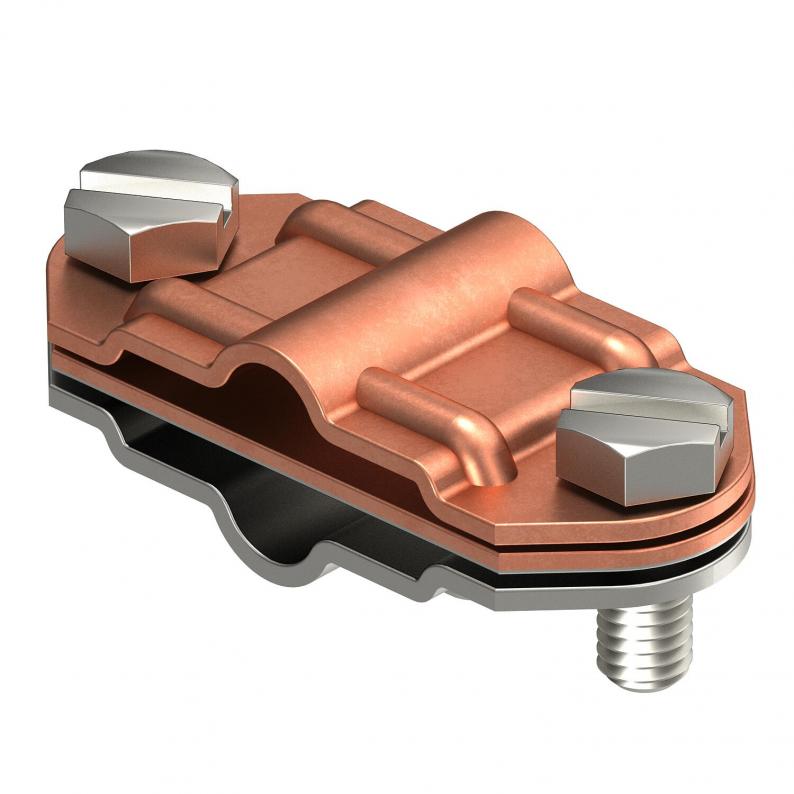

Bi-metal separating piece for Rd 8−10 and FL 30 mm
Type 233 ZV
|Item no. 5336376
|EAN 4012195424819
Item no. / Type
5336376 / 233 ZV
Fit
Rd 8-10/FL30 x Rd 8-10/FL30 mm
Smallest selling unit: 10 piece
10piece
piece
Description

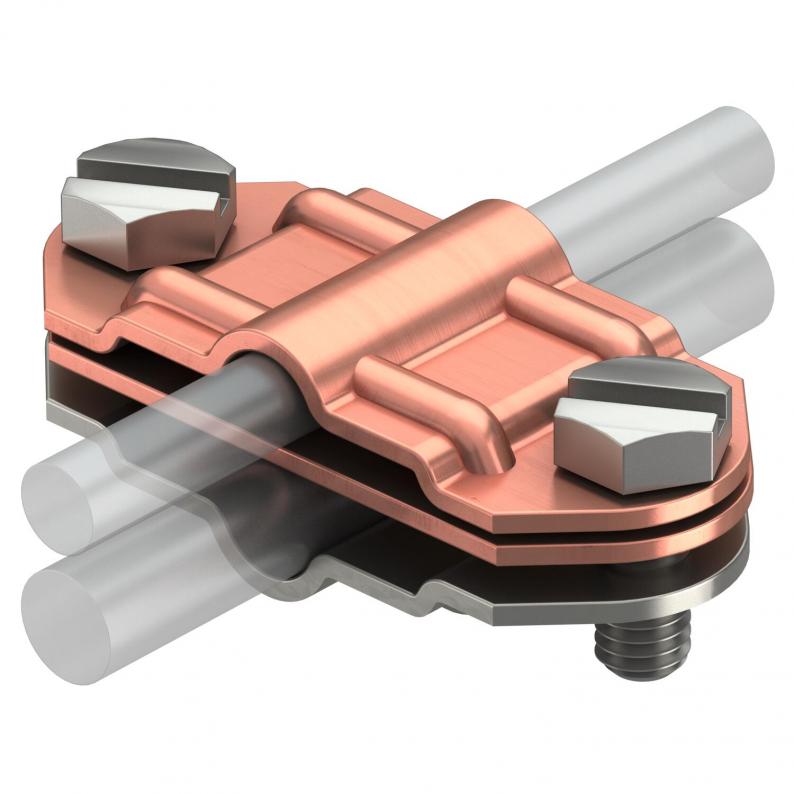

• For fitting round conductors Rd 8-10 to flat conductors FL 30
• With 2 hexagonal bolts M8 x 20, stainless steel (VA)
• Intermediate plate aluminium/copper, top section copper, bottom section stainless steel
• With 2 hexagonal bolts M8 x 20, stainless steel (VA)
• Intermediate plate aluminium/copper, top section copper, bottom section stainless steel
Technical data
Technical data
| Intermediate plate | yes |
|---|---|
| Bimetal connector | yes |
| Suitable for connection | Miscellaneous |
| Material lower part | VA |
| Material upper part | Cu |
| Fit | Rd 8-10/FL30 x Rd 8-10/FL30 mm |
| Dimension | FL/RdxFL/Rd |
| Material | Stainless steel 1.4301 |
Environmental Data
0,6488 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,6488 kg CO2e / 1 Piece |
|---|
