BKRS FT support bracket

BKRS FT support bracket

Type STA BKRS 100 FT
|
Item no. 6044541
|
EAN 4012196695096
Show all variants
Item no. / Type
Dimension B

Smallest selling unit: 1 piece

piece

Description

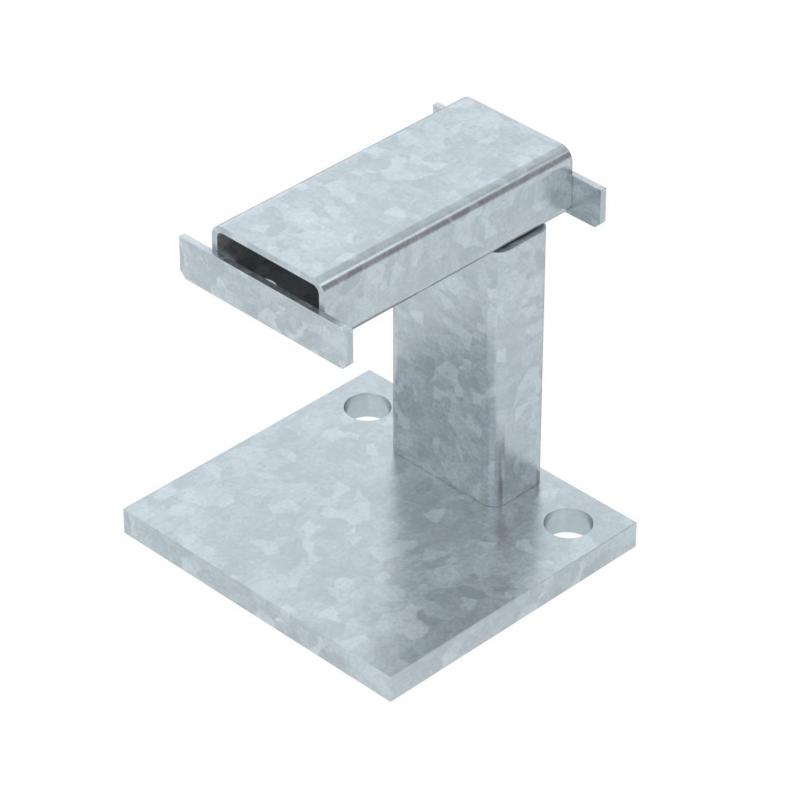

Support bracket, made of closed rectangular steel pipe, as a stand-off of the walkable cable tray system.



  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

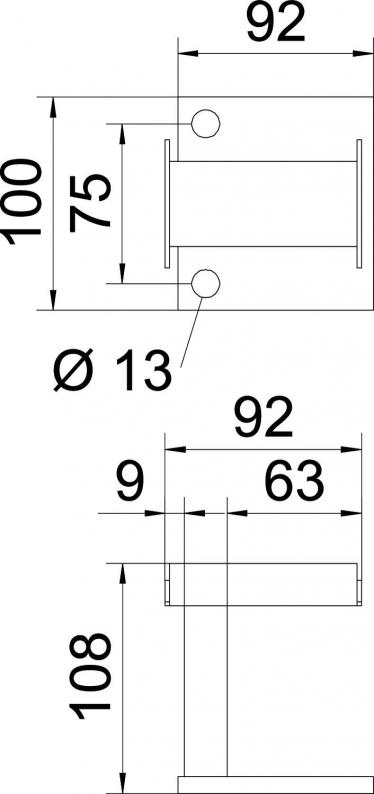

Dimensions

Length100 mm
Width98 mm
Height108 mm
Dimension B92 mm
Dimension b111 mm
Dimension b261 mm
Dimension D13 mm

Technical data

Rustproof steel, pickledno
for width min.100
for width max.100 mm
Suitable for mesh cable trayno
Suitable for cable ladderno
Suitable for cable trayyes
Version forSupport bracket
Version forMiscellaneous
Tray fasteningScrew-on
DimensionB=100
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

2,2811 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate2,2811 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Instructions and Aid (4)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Dimension B
STA BKRS 100 FT
Item no.
6044541
Dimension B
92
STA BKRS 200 FT
Item no.
6044543
Dimension B
192
STA BKRS 300 FT
Item no.
6044545
Dimension B
292
STA BKRS 400 FT
Item no.
6044547
Dimension B
392
STA BKRS 500 FT
Item no.
6044551
Dimension B
492
STA BKRS 600 FT
Item no.
6044553
Dimension B
592
