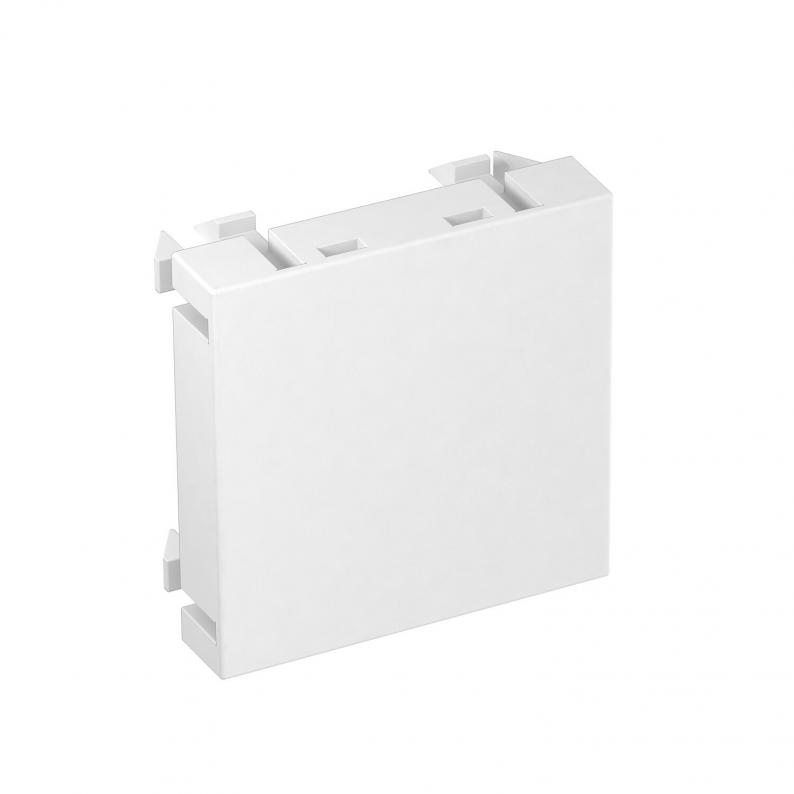

Blanking cover, 1 module, pure white
Type ADP-B RW1
|Item no. 6117406
|EAN 4012196117499
Item no. / Type
Smallest selling unit: 10 piece
10piece
piece
Description
Blanking cover for closing off empty spaces for a device (one module).
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
Technical data

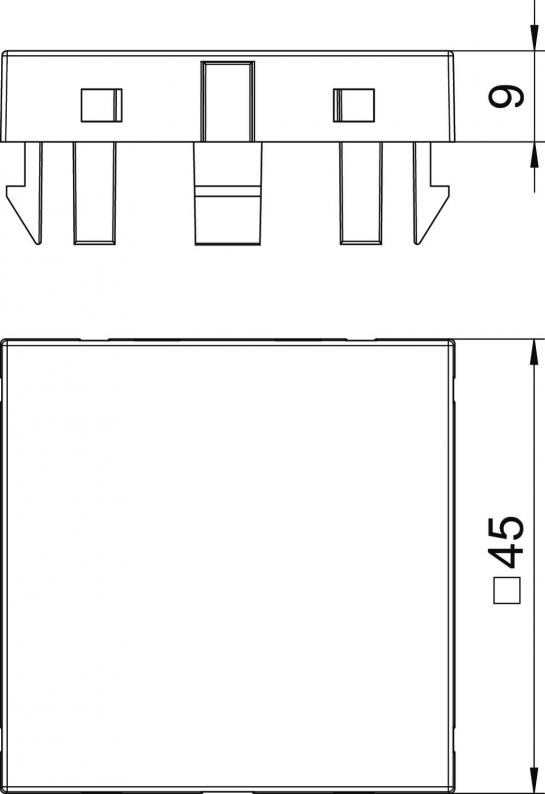

Dimensions
| Width | 45 mm |
|---|---|
| Height | 45 mm |
Technical data
| Hinged cover | no |
|---|---|
| Metin alanı/Etiket alanı | no |
| Halojen İçermez | no |
| Ünite sayısı | 0 |
| Koruma sınıfı | Other |
| Suitable for flush-mounted installations | no |
| Suitable for underfloor duct socket | no |
| Suitable for device installation ducts | yes |
| Suitable for built-in installations | no |
| Flush-mounted version | yes |
| Depth | 9 mm |
| Surface version | Matt |
| Mounting direction | Horizontal |
| Transparent | no |
| Number of units, horizontal | 0 |
| Anzahl der Einheiten vertikal | 0 |
| Fastening type | Clamp fastening |
| Boyut | 45x45mm |
| Colour | Pure white; RAL 9010 |
| Antibacterial treatment | no |
| Printed push-button label | Without |
| Version for cover/operating element for installation switch programme | Blanking cover |
| Scannable symbol/barrier-free [Bitte prüfen, ob so gemeint. Ist das technische Scannen gemeint oder aber das Fühlen vom Symbol mit den Fingern (für Blinde, da hier auch von barrierefrei gesprochen wird)] | no |
| Changeable lense/symbol | no |
| Use of cover/operating element for installation switch programme | Panel |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,0612 kg CO2e / 1 Piece |
|---|
