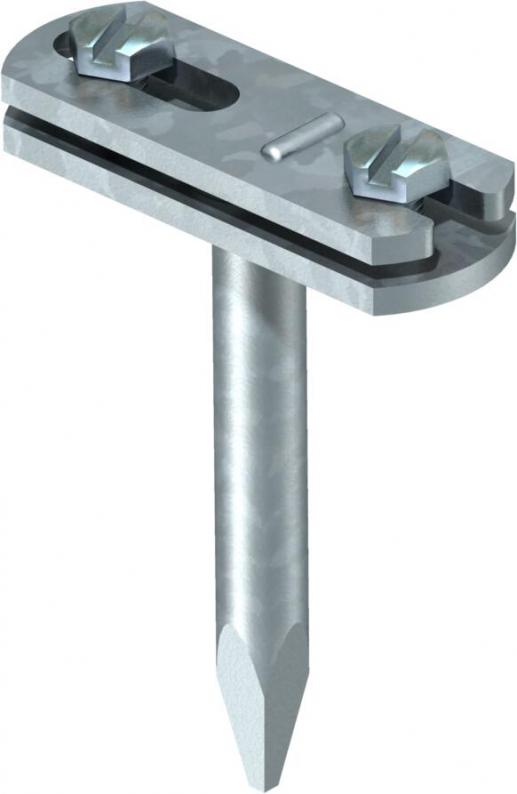

Cable bracket for flat conductors, with round pin
Type 166 LS 70
|Item no. 5226570
|EAN 4012195410416
Item no. / Type
5226570 / 166 LS 70
Cable dimensions
30 x 4 mm flat
Smallest selling unit: 50 piece
50piece
piece
Description
• With crossbar and 2 hexagonal bolts (VA)
• With loose round pin Ø 9 mm
• With loose round pin Ø 9 mm
Technical data
Dimensions
| Length | 70 mm |
|---|
Technical data
| Cable dimensions | 30 x 4 mm flat |
|---|---|
| Holder fastening type | With impact pin |
| High voltage-resistant, insulated version | no |
| Material of the crossbar | Steel |
| Material of the base | Steel |
| Conductor fastening type | With screw clip |
| Use in Ex area | yes |
| Material of the holder | Steel |
| Uyumluluk | FL30 mm |
| Boyut | 70mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,268 kg CO2e / 1 Piece |
|---|
