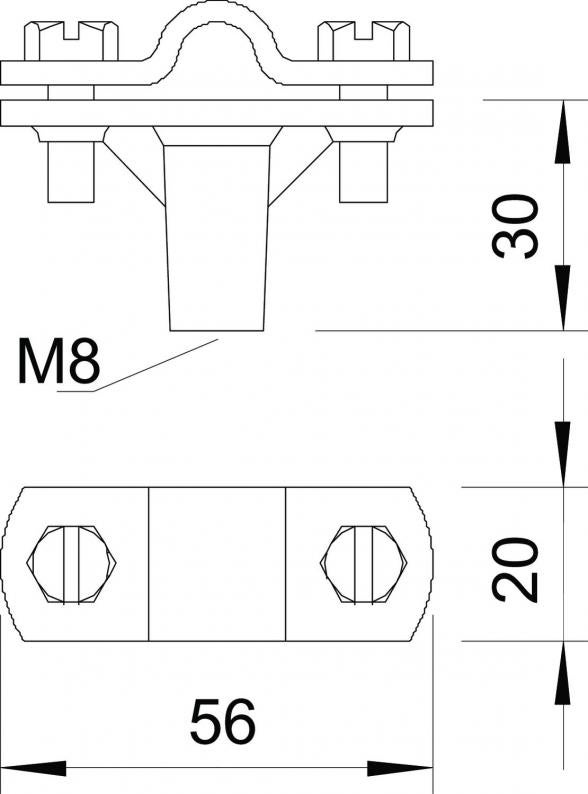

Cable bracket Rd 8–10 mm, 30 mm mounting height

Cable bracket Rd 8–10 mm, 30 mm mounting height

Type 168 DIN-K-M8
|
Item no. 5229839
|
EAN 4012195412151
Show all variants
Item no. / Type

Smallest selling unit: 20 piece

piece

Description

• With female thread (G)
• With over-piece and 2 hexagonal bolts
• Installed height 30 mm
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Thread metric8
ThreadM8
Cable dimensions8−10 mm round
Holder fastening typeDrill hole with M-thread
High voltage-resistant, insulated versionno
Material of the crossbarDie-cast zinc
Material of the baseDie-cast zinc
Conductor fastening typeWith screw clip
Use in Ex areayes
Material of the holderDie-cast zinc
FitRd 8-10 mm
Dimension8-10mm
SurfaceElectrogalvanised
MaterialDie-cast zinc

Environmental Data

0,3079 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,3079 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,3079 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Product images (2)
Tender specifications (1)

Variants

168 8-10 M6
Item no.
5229162
Cable dimensions
8−10 mm round
168 DIN-K-M8
Item no.
5229839
Cable dimensions
8−10 mm round
