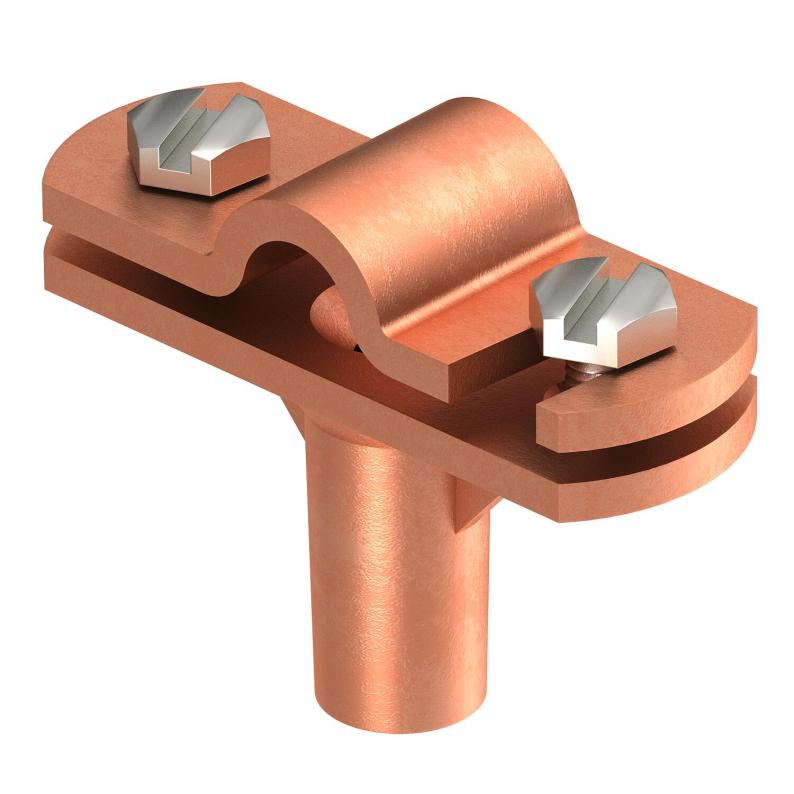

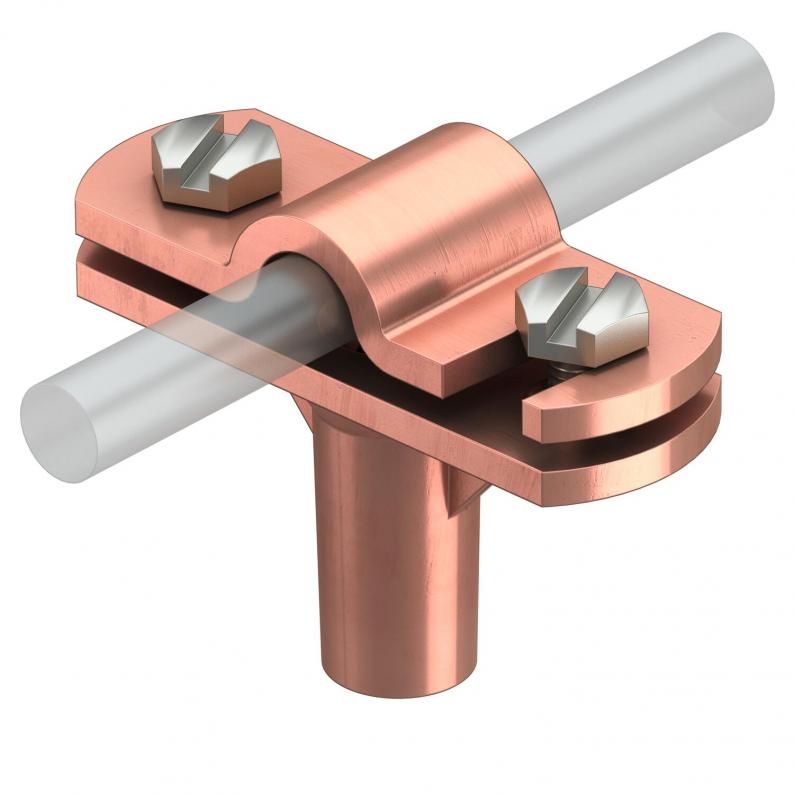

Cable bracket with hinged crossbar
Type 168 ZN-M6
|Item no. 5229367
|EAN 4012195411550
Item no. / Type
Smallest selling unit: 20 piece
20piece
piece
Description
• With female thread (G)
• With over-piece and 2 hexagonal bolts

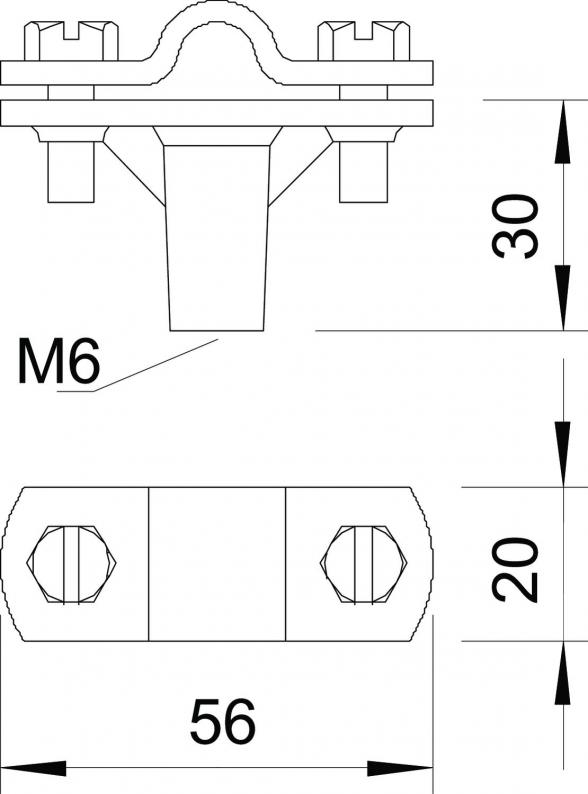

• Installed height 30 mm
• With over-piece and 2 hexagonal bolts
• Installed height 30 mm
Technical data
Technical data
| Thread metric | 6 |
|---|---|
| Thread | M6 |
| Cable dimensions | 8−10 mm round |
| Holder fastening type | Drill hole with M-thread |
| High voltage-resistant, insulated version | no |
| Material of the crossbar | Die-cast zinc |
| Material of the base | Die-cast zinc |
| Conductor fastening type | With screw clip |
| Use in Ex area | yes |
| Material of the holder | Die-cast zinc |
| Fit | Rd 8-10 mm |
| Dimension | 8-10mm |
| Surface | Copper-plated |
| Material | Die-cast zinc |
Environmental Data
0,1641 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1641 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,1641 kg CO₂e |
| Determination date of CO2 value | 2025-05-21T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
