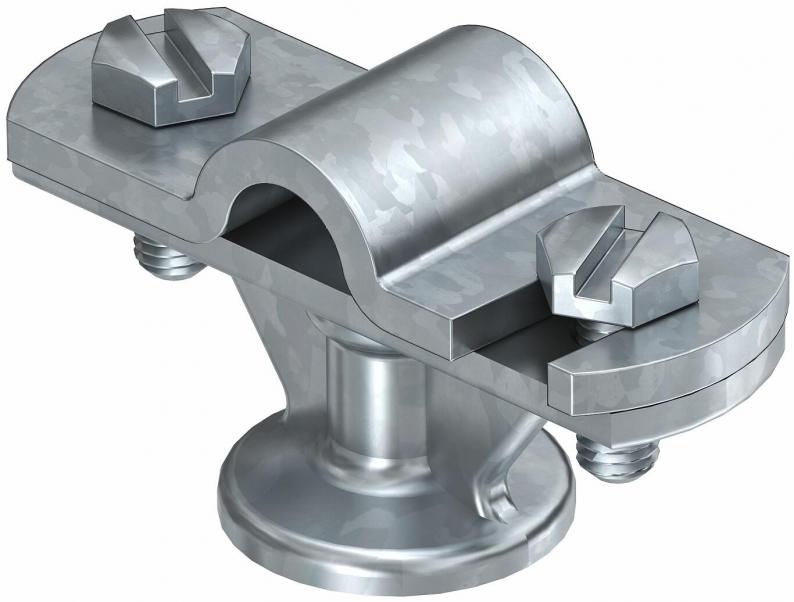

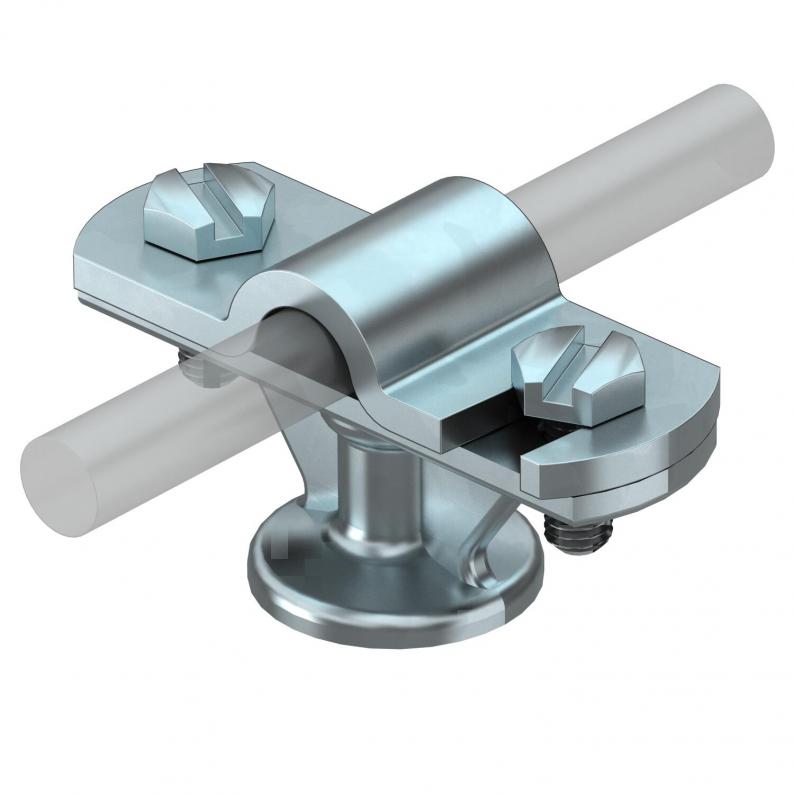

Cable bracket with hinged crossbar Rd 8−10 mm
Type 113 Z-K 8-10
|Item no. 5229961
|EAN 4012195840886
Item no. / Type
5229961 / 113 Z-K 8-10
Cable dimensions
8−10 mm round
Smallest selling unit: 20 piece
20piece
piece
Description
• With female thread M8 or through hole Ø 7 mm
• Hinge crossbar for quick swivel mounting
• Crossbar mounted with 2 hexagonal bolts
• Hinge crossbar for quick swivel mounting
• Crossbar mounted with 2 hexagonal bolts
Technical data
Technical data
| Thread metric | 8 |
|---|---|
| Cable dimensions | 8−10 mm round |
| Holder fastening type | Drill hole with M-thread |
| High voltage-resistant, insulated version | no |
| Material of the crossbar | Die-cast zinc |
| Material of the base | Die-cast zinc |
| Conductor fastening type | With screw clip |
| Use in Ex area | yes |
| Material of the holder | Die-cast zinc |
| Uyumluluk | Rd 8-10 mm |
| Boyut | 8-10mm |
| Surface | Electrogalvanized |
| Material | Die-cast zinc |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,2661 kg CO2e / 1 Piece |
|---|
