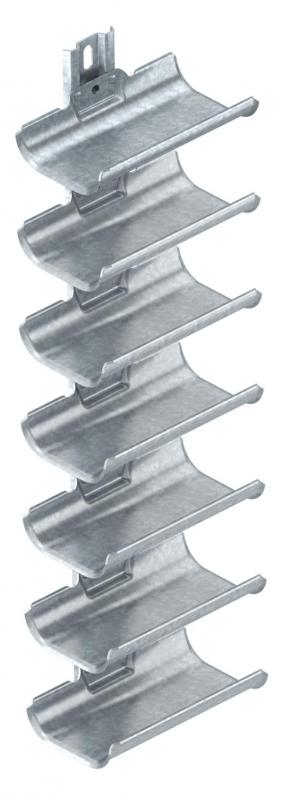

Cable carrier troughs, 7-fold, with mounting rail
Type KTW 100 7 FT
|Item no. 6006907
|EAN 4012196409181
Item no. / Type
6006907 / KTW 100 7 FT
Height
700 mm
zemin yüksekliği
0,5 kN
Number of troughs
7 St.
Smallest selling unit: 1 piece
1piece
piece
Description
Cable support brackets for quick and easy routing of cables in areas where common cable support systems cannot be installed due to lack of space. The cable support brackets possess a large load-bearing surface as well as rounded outer edges to protect the cables.
In accordance with DIN VDE 0298-300, a maximum support spacing of 0.8 m should not be exceeded.
Technical data
Dimensions
| Length | 198 mm |
|---|---|
| Width | 122 mm |
| Height | 700 mm |
| Dimension L | 700 mm |
Technical data
| Plate thickness | 2 mm |
|---|---|
| Ayarlanabilir | no |
| zemin yüksekliği | 0,5 kN |
| Number of troughs | 7 St. |
| Boyut | 700x200x123 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 10,5092 kg CO2e / 1 Piece |
|---|
