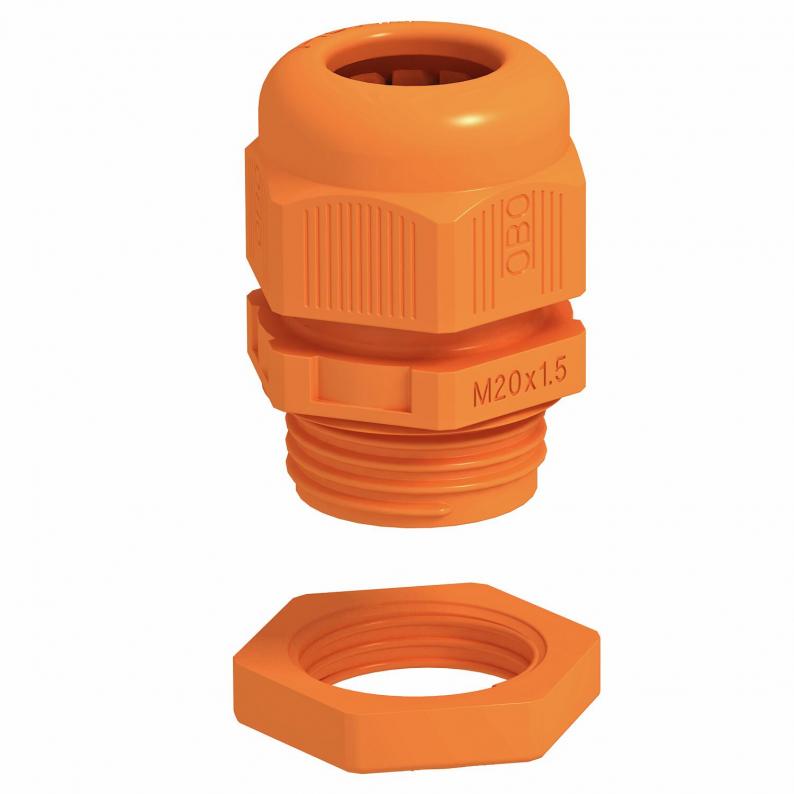

Cable gland with locknut as a set
Type V-TEC VM16+ OR
|Item no. 7205657
|EAN 4012196632800
Item no. / Type
Vida dişi
Sealing insert, multiple
Smallest selling unit: 10 piece
10piece
piece
Description
Robust cap nut cable gland with metric connecting thread to IEC 423, including pre-mounted locknut.
For high tightness requirements. Strain relief, torsion protection and tightness over the whole clamping area. Sealing ring made of polychloroprene/acrylonitrile butadiene rubber. Moulded shaped sealing lip on intermediate support, no connection thread sealing ring required.
VDE-tested according to DIN EN 50262, protection rating IP68 at 5 bar for 1 hr.
For maintenance of electrical function according to DIN 4102 Part 12 in connection with the closed junction boxes of the FireBox T series.
Colour: Pastel orange.
For high tightness requirements. Strain relief, torsion protection and tightness over the whole clamping area. Sealing ring made of polychloroprene/acrylonitrile butadiene rubber. Moulded shaped sealing lip on intermediate support, no connection thread sealing ring required.
VDE-tested according to DIN EN 50262, protection rating IP68 at 5 bar for 1 hr.
For maintenance of electrical function according to DIN 4102 Part 12 in connection with the closed junction boxes of the FireBox T series.
Colour: Pastel orange.
Technical data
Technical data
| Darbeye dayanıklı | no |
|---|---|
| Halojen İçermez | yes |
| Cam elyafı takviyeli | no |
| Çekme yükü azaltma imkanı | yes |
| Koruma sınıfı | IP68 |
| Vida dişi | M16 x 1,5 |
| For Ex zone | Without |
| Thread type | Metric |
| Bend protection | no |
| With locknut | yes |
| Sealing insert, multiple | no |
| Flat cable gland | no |
| Splittable gland | no |
| For Ex zone gas | Without |
| For Ex zone dust | Without |
| Thread increase | 1,5 mm |
| Sızdırmazlık alanı D min. | 4,5 mm |
| Sızdırmazlık alanı D maks. | 10 mm |
| WAF | 20 |
| Ölçü E1 (mm) | 22 mm |
| Dimension E2 | 25 mm |
| Vida dişi uzunluğu | 9 mm |
| WAF 1 | 20 mm |
| WAF 2 | 22 mm |
| Kullanılabilir sıcaklık aralığı min. | -20 °C |
| Kullanılabilir sıcaklık aralığı maks. | 65 °C |
| Aleve dayanıklı | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Boyut | M16 |
| Material | Polyamide |
| Colour | Pastel orange; RAL 2003 |
Dimensions
| Dimension G | M16 x 1,5 mm |
|---|---|
| Dimension L min. | 21,5 mm |
| Dimension L max. | 23,5 mm |
| Dimension L1 | 8 mm |
| Dimension L2 | 5 mm |
| Dimension L3 | 5 mm |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,0336 kg CO2e / 1 Piece |
|---|
